Product Details:
|
| Highlight: | Huawei S9700 Core Routing Switch SFP,CU3M Huawei S9700 Core Routing Switch |
||
|---|---|---|---|

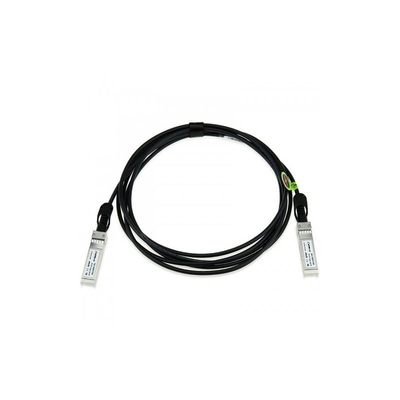

The SFP+ DAC copper cable is programmed to be compatible with a wide range of HWnetwork equipment for in-rack connections such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Network Storage Systems. Its proven to be a cost-effective alternative to high-cost HW SFP-10G-CU3M 10G SFP+ 3m direct attach the copper cable.
Table 1 shows the Quick Specs.
| Product Code | SFP-10G-CU3M |
| Supply Voltage | 3.3V |
| Cable Length | 3m |
| Cable impedance | 100 |
| CableType | Twinax |
| Wire Gauge | 30AWG |
Huawei SFP-10G-CU3Mprovides these features:
lower cost than SFP+ optical transceiver and active optical cable (AOC)
SFP-10G-CU3M Specification |
|
| Compatible OEM Part Number | SFP-10G-CU3M |
| Form Factor | SFP+ DAC Cable |
| Data Rate | 10.5Gb/s |
| Passive or actively equalized | Passive |
| Supply Voltage | 3.3V |
| Cable Length | 3 m |
| Cable impedance | 100 Ω |
| Cable Type | Twinax |
| Wire Gauge | 30AWG |
| Minimum cable bend radius | 25 mm |
| Cable Jacket Type | PVC |
| Connector | SFP+/SFP+ |
| Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
| Application |
Storage Area Networks (SAN) Network Attached Storage The switched fabric I/O High-density connections between networking equipment Data center cabling infrastructure |
| Compliance |
SFF-8472, SFF-8431 IEC/EN 61000-4-2 MIL-STD -883E, RoHS |
