Product Details:
|
| Name: | ISR4431-K9 | Model: | Cisco ISR 4431 4GE 3NIM 8G FLASH 4G DRAM IP Base Detail 500Mbps-1Gbps System Throughput, 4 WAN/LAN Ports, 4 SFP |
|---|---|---|---|
| Aggregate Throughput: | 500 Mbps To 1 Gbps | Rack Height: | 1 RU |
| Warrranty: | 1 Year | Shipping: | DHL&FeDex |
| Onboard ISC Slot: | 1 | SFP-based Ports: | 4 |
| Power-supply Options: | Internal: AC DC And PoE | Payment: | TT/paypal |
| Highlight: | SR4431 K9 Network Interface Modules,Network Interface Modules 500 Mbps |
||
Cisco 4431 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 500 Mbps to 1 Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.

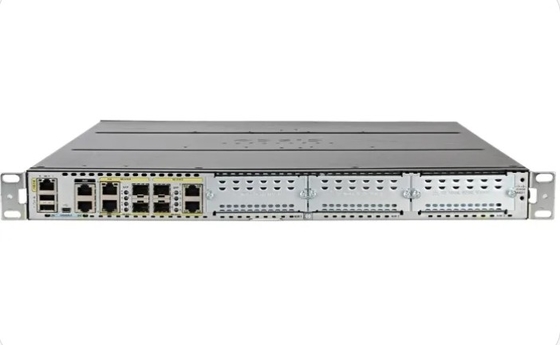

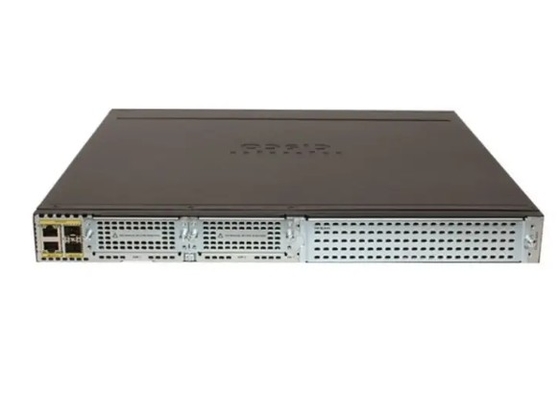

Figure 1 shows the appearance of Cisco ISR4431/K9.
Table 1 shows the Quick Specs.
| Product Code | Cisco ISR4431/K9 |
| Aggregate Throughput | 500 Mbps to 1 Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module (SM-X) slot | 0 |
| NIM (Network Interface Modules) slots | 3 |
| Onboard ISC slot | 1 |
| DDRM (data plane) | 2 GB (default) / 2 GB (maximum) |
| DDRM (control/services plane) | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 8 GB (default) / 32 GB (maximum) |
| Power-supply options | Internal: AC, DC, and PoE |
| Rack height | 1 RU |
| Dimensions (H x W x D) | 43.9 x 438.15 x 507.2 mm |
| Package Weight | 20.88 Kg |

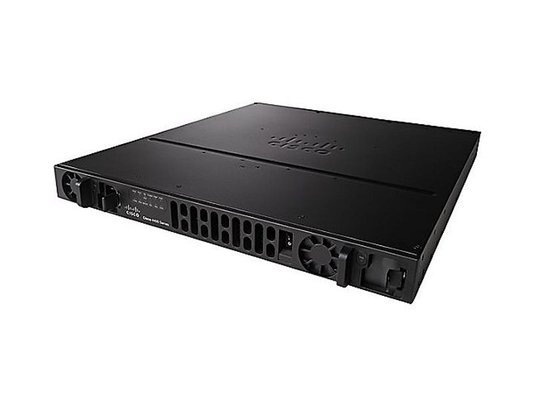

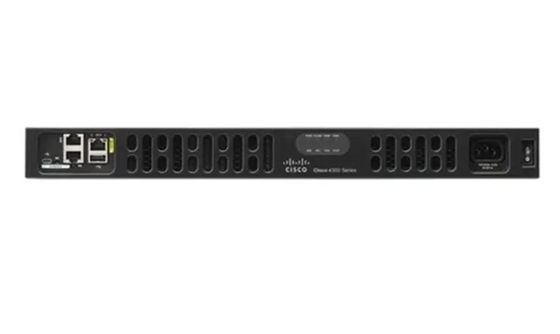

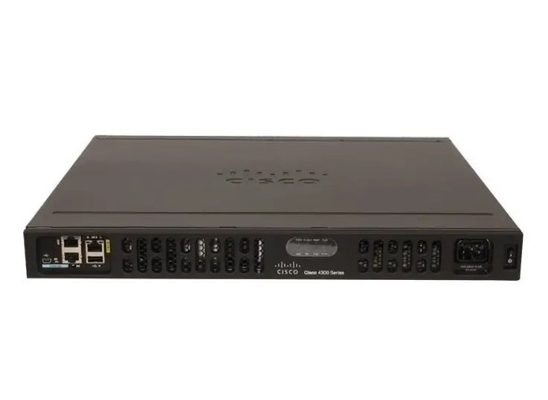

Figure 2 shows the front panel of Cisco ISR4431/K9.
Note:
| ① | Power supply unit | ③ | Router power On/Off switch |
| ② | LEDs | ④ | Optional power supply unit |
·LEDs include 12 indicators.
