Product Details:
|
| Model: | OSXD22N00 | Transceiver Form Factor: | SFP+ |
|---|---|---|---|
| Transmission Speed: | 10 Gbit/s | Center Wavelength (nm): | 1310mm |
| Connector Type: | LC | Optical Fiber Type: | MMF |
| Multimode Fiber: | 0.1 Km | Condition: | New Factory Sealed |
| Warranty: | 1 Year | Shipment: | DHL, Fedex, UPS |
| Payment: | T/T, Western Union, Paypal | ||
| Highlight: | 10G Multi-Mode Module,Huawei Optical Transceiver,OSXD22N00 |
||

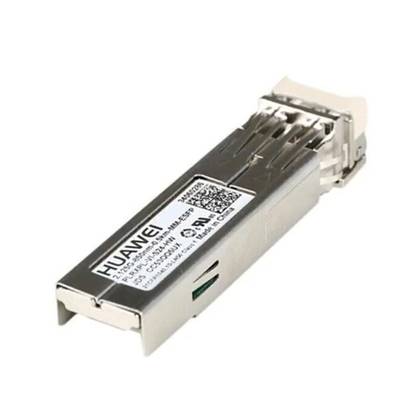

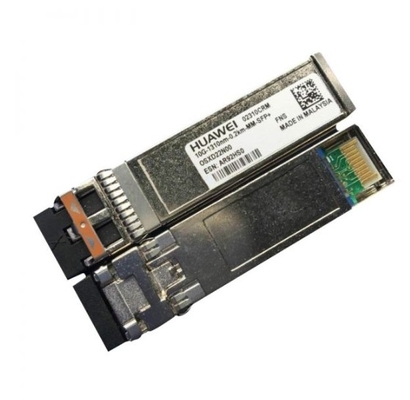

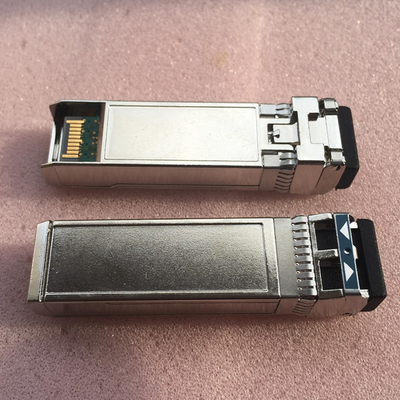

Huawei OSXD22N00 is an optical transceiver designed for high-speed data transmission. It is a 10G SFP+ module that supports multi-mode connections. With a wavelength of 1310nm, it offers a transmission distance of up to 0.22km. The module features an LC connector and is ideal for long-reach multi-mode (LRM) applications.
Table 1 shows the quick spec of OSXD22N00.
| Product Type | Optical Transceiver |
| Optical fiber type | MMF |
| Form factor | SFP+ |
| Optical Fiber | Multi-mode |
| Wavelength | 1310nm |
| Transmission Distance | 0.22km |
| Connector Type | LC |
Table 2 shows the supported options of OSXD22N00.
| Accessory | Model |
| LC Connector | LC-Connector |
| Optical Fiber Cable | Multimode Fiber Cable |
OSXD22N00 Specifications |
|
| Product Model Specification | Value |
| Product Brand | Huawei |
| Module name | OSXD22N00 |
| Application standard | 10GBASE-LRM |
| Connector Type | LC |
| Form factor | SFP+ |
| Optical fiber type | MMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Center wavelength [nm] | 1310nm |
| Multimode fiber | 0.1 km |
| Supported Protocols | 10 Gbit/s |
| Maximum Tx optical power [dBm | 0.5 dBm |
| Minimum Tx optical power [dBm] | -6.5 dBm |
| Minimum extinction ratio [dB] | 3.5 dB |
