Product Details:
|
| Name: | SFP 10G SR S | Model: | 10GBASE SR SFP Module Enterprise Class |
|---|---|---|---|
| Type: | 10GBASE SR 850nm MMF | Bail Latch Color: | Beige |
| Warrranty: | 1 Year | Shipping: | DHL&FeDex |
| Product Type: | Module | Power Consumption (W): | 1 |
| Operating Temperature Range: | WITH | ||
| Highlight: | 26 meters SR S SFP,10G SR S SFP |
||

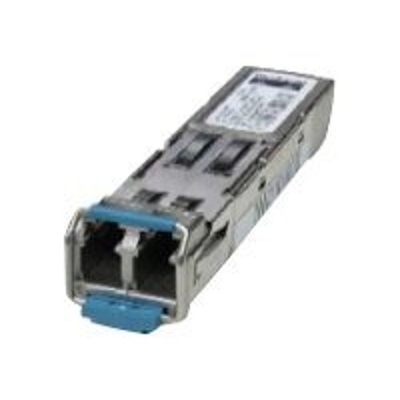

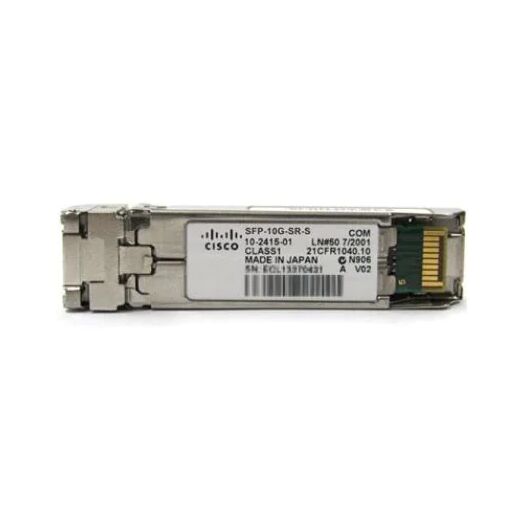

The Cisco 10GBASE-SR module SFP-10G-SR-S supports a link length of 26 meters on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000 MHz*km MMF (OM3), up to 300-meter link lengths are possible. Using 4700 MHz*km MMF (OM4), up to 400 meter link lengths are possible.
Table 1 shows the quick spec.
| Product Number | SFP-10G-SR-S | |
| Description | Cisco 10GBASE-SR SFP+ Module for MMF | |
| Type | 10GBASE-SR 850nm MMF | |
| Transmit Power (dBm) | Maximum | Minimum |
| -1.2 | -7.3 | |
| Receive Power (dBm) | Maximum | Minimum |
| -1.0 | -9.9 | |
| Transmit and Receive Wavelength (nm) | 840 to 860 | |
| Bail Latch Color | Beige | |
| Power Consumption (W) | 1 | |
| Operating Temperature Range | WITH | |
