Product Details:
|
| Dimensions: | 1.7 Inch*17.3 Inch*19.5 Inch | Weight: | 20.99 Lbs |
|---|---|---|---|
| Part NumberN9K-C93180YC-FX: | N9K-C93180YC-FX | Port: | 48 |
| Model: | 93180YC-FX3H | RAM Installed: | 32 GB |
| Switching Type: | 25 Gigabit Ethernet | Manageable: | Yes |
| Warranty: | 1year | Shipping: | DHL&FeDex |
| Highlight: | N9K Cisco Nexus 9000 Series Switch,FX3H Cisco Nexus 9000 Series Switch,C93180YC Cisco Nexus 9000 Series Switch |
||
For data requirements big or small, multispeed ports have your back with full backward compatibility. They can flex and scale with you, while you handle the growth.
Toughen, tighten, and protect your network with streaming telemetry, advanced analytics, and line-rate encryption (MACsec).
Reduce operational costs with unified ports supporting 10/25G Ethernet and 8/16/32G Fiber Channel, RDMA over converged Ethernet (RoCE), and IP storage.
Dial in performance with intelligent buffers and zero packet drop for 50 percent faster application completion time.
Product Details
Cisco N9K-C93180YC-FX provides the following features and benefits:
①Architectural Flexibility
②Architectural Flexibility
③High Scalability, Flexibility, and Security
④Intelligent Buffer Management
⑤RDME over Converged Ethernet – RoCE Support
⑥LAN and SAN Convergence
⑦Hardware and Software High Availability
⑧Purpose-Built Cisco NX-OS Software Operating System with Comprehensive, Proven Innovations
⑨Cisco Tetration Analytics Platform Support
⑩Cisco Network Assurance Engine (NAE)

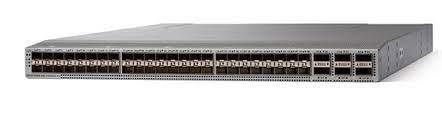

Figure 1 shows the front panel of Cisco N9K-C93180YC-FX.
| SKU | N9K-C93180YC-FX |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds |
1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel |
| CPU | 6 cores |
| System memory | Up to 32 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Typical power (AC/DC) | 260W |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Product Name | N9K-C93180YC-FX | N9K-C93108TC-FX | N9K-C9348GC-FXP |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports | 48 x 100M/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports | 48 x 1-GBASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100 QSFP28 ports |
| CPU | 6 cores | 4 cores | 4 cores |
| System memory | Up to 32 GB | 24 GB | 24 GB |
| SSD drive | 128 GB | 128 GB | 128 GB |
| System buffer | 40 MB | 40 MB | 40 MB |
| USB ports | 1 | 1 | 1 |
| RS-232 serial ports | 1 | 1 | 1 |
