Product Details:
|
| Model: | S5735-S48T4XE-V2 | S5735-S48P4XE-V2: | 48 X 10/100/1,000 Base-T Ports, 4 X 10 GE SFP+ Ports |
|---|---|---|---|
| Memory: | 512 MB | Forwarding Performance: | 108 Mpps |
| Switching Capacity: | 336 Gbps | Dimensions: | 442 Mm X 420 Mm X 43.6 Mm |
| Weight: | 8kg | Condition: | Brand New Sealed |
| Warranty: | 1 Year | Payment: | T/T, Western Union, Paypal |
| Shipment: | DHL, Fedex, UPS | ||
| Highlight: | huawei network switches S5735-S48T4XE-V2,huawei switch S5735-S48T4XE-V2,Huawei s5700 series ethernet switches |
||

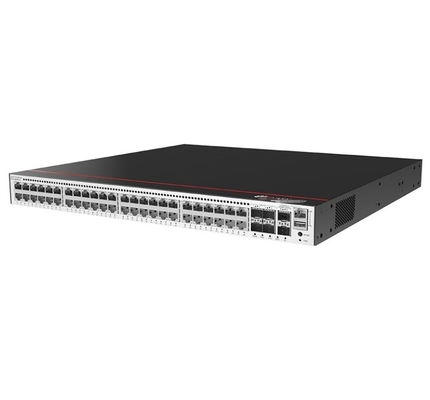

The Huawei S5735-S48T4XE-V2 switch is a cutting-edge, high-performance network switch designed to meet the diverse needs of modern enterprises. This advanced switch supports comprehensive security features, high reliability, and simplified network management, making it an ideal choice for building next-generation enterprise networks.
| Brand | Huawei |
| Model | S5735-S48T4XE-V2 |
| Ports | 48 x Gigabit Ethernet, 4 x 10 Gigabit SFP+ |
| Forwarding Performance | 108 Mpps |
| Switching Capacity | 336 Gbps |
The Huawei S5735-S48T4XE-V2 switch is versatile enough for various application scenarios, including:
| Accessories | Model |
| Stacking Module | LS5M100P8S |
| Power Supply | PAC-600WB-B |
| Optical Transceivers | eSFP, SFP-10G-USR |
| Model | Key Differences |
| S5735-S48P4XE-V2 | 48 x GE, 4 x 10GE SFP+, 336 Gbps |
| S5730-S24P4X | 24 x GE, 4 x 10GE SFP+, 256 Gbps |
| S5735-L48T4X-A1 | 48 x GE, 4 x 10GE SFP+, Lite Layer 3 Features |
| S5720-32X-EI-24S-AC | 24 x GE SFP, 8 x 10GE SFP+, Enhanced Layer 3 Features |
Huawei S5735-S48T4XE-V2 Specifications |
|
| Product Type | Layer 3 Fixed Switch |
| Fixed Ports | 48 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports |
| Memory | 512 MB |
| Flash | 512 MB |
| Forwarding Performance | 108 Mpps |
| Switching Capacity | 336 Gbps |
| MAC Address Table | 16K MAC address entries |
| VLAN Features | 4K VLANs, Guest VLAN, Voice VLAN |
| IPv4 Routing | Static route, RIP, OSPF, IS-IS, BGP |
| IPv6 Routing | Static route, RIPng, OSPFv3, IS-ISv6, BGP4+ |

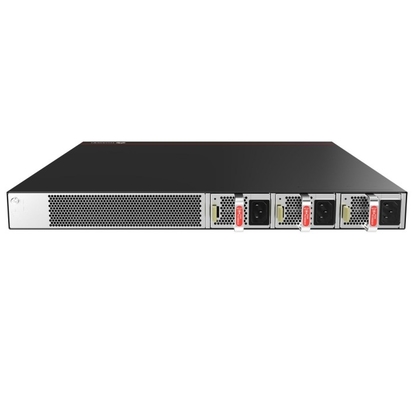

| Power Supply | AC: Rated voltage range: 100V to 240V AC, 50/60 Hz |
| Power Consumption | Operational: Maximum < 54W |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Operating Temperature | -5℃ to +50℃ |
| Humidity | 5% to 95% (non-condensing) |
| Quality of Service (QoS) | Support 8 queues per port, DSCP, SP, WRR, DRR, etc. |
| Security Features | 802.1x, Radius, TACACS+, SSH v2, IP Source Guard, etc. |
| Reliability | VRP (Versatile Routing Platform), BFD for VRRP, BFD for BGP/IS-IS/OSPF/Static route |
| Management and Maintenance | SNMP v1/v2c/v3, RMON, Web management, eSight support, etc. |
