Product Details:
|
| Model: | ISR4221/K9 | Aggregate Throughput: | 35 Mbps To 75 Mbps |
|---|---|---|---|
| WAN/LAN Ports: | 2 | SFP Port: | 1 |
| CPU: | Multi-Core | Management Port: | 1 GE (Integated Out Of Band) |
| Default/max Memory: | 4 GB | Default/max Flash Memory: | 8G |
| Power Supply Type: | External: AC Only | Condition: | Brand New Sealed |
| Warranty: | 1 Year | Payment: | T/T, Western Union, Paypal |
| Shipment: | DHL, Fedex, UPS | ||
| Highlight: | 35Mbps-75Mbps Cisco ISR 4221 router,2 NIM Cisco ISR 4221 router,SFP Port Multi Core CPU |
||

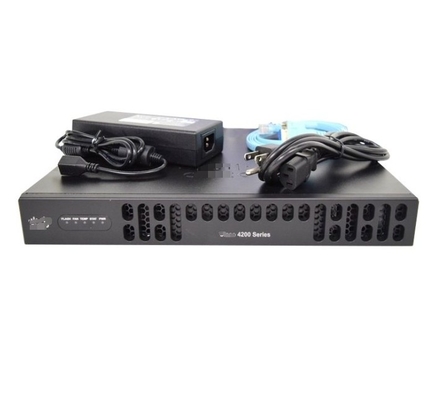

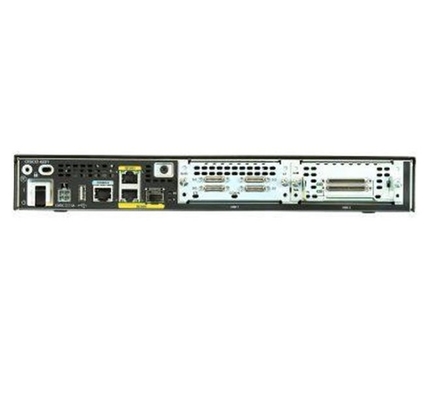

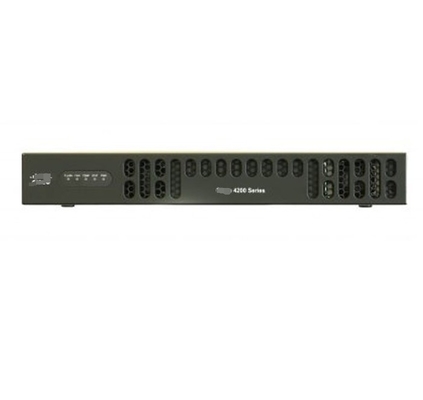

Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 35Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 75Mbps by buying licenses.
Table 2 shows some recommended modules, cards, and cables.
| tems | Models | Description |
| Console and Auxillary Cables | CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
| Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
| NIM-ES2-4 | Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2 | |
| NIM-ES2-8 | Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM | |
| SFPs for On-Board GE Ports | GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | |
| GLC-SX-M MD | Cisco GLC-SX-M MD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| Technical Specifications | ISR4461/K9 | ISR4451-X/K9 | ISR4431/K9 | ISR4351/K9 | ISR4331/K9 | ISR4321/K9 | ISR4221/K9 |
| Aggregate Throughput | 1.5Gbps |
1 Gbps to 2 Gbps |
500 Mbps to 1 Gbps |
200 Mbps to 400 Mbps |
100 Mbps to 300 Mbps |
50 Mbps to 100 Mbps |
35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 | 4 | 3 | 3 | 2 | 2 |
| RJ-45-based ports | 4 | 4 | 4 | 3 | 2 | 2 | 2 |
| SFP-based ports | 4 | 4 | 4 | 3 | 2 | 1 | 1 |
| Enhanced service-module slots | 3 | 2 | 0 | 2 | 1 | 0 | 0 |
| Doublewide service-module slots | 2 | 1 (assumes no singlewide SM-X modules installed) | 0 | 1 (assumes no singlewide SM-X modules installed) | 0 | 0 | 0 |
| NIM slots | 3 | 3 | 3 | 3 | 2 | 2 | 2 |
| OIR (all I/O modules) | Yes | Yes | Yes | Yes | Yes | Yes | No |
| Onboard ISC slot | 1 | 1 | 1 | 1 | 1 | 1 | No |
Cisco ISR4221/K9 Specification |
|
| Aggregate Throughput | 35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | No |
| Onboard ISC slot | No |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 4 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 8 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 0 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 (combo CON/AUX port) |
| Power-supply options | External: AC Only |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 24 |
| Maximum power with AC power supply (watts) | 90 |
| Maximum power with PoE power supply (platform only) (watts) | NA (no PoE support) |
| Maximum endpoint PoE power available from PoE power supply (watts) | NA (no PoE support) |
