Product Details:
|
| Model: | ISR4321-VSEC/K9 | System Throughput: | 50Mbps-100Mbps |
|---|---|---|---|
| WAN/LAN Ports: | 2 | SFP Port: | 1 |
| CPU: | Multi-Core | Management Port: | 1 GE (Integated Out Of Band) |
| Default/max Flash: | 4 GB / 8 GB | Power Supply Type: | External: AC, PoE |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |
| Highlight: | 1 SFP port Cisco ISR 4321,multi Core CPU Cisco ISR 4321,ISR4321-VSEC/K9 |
||

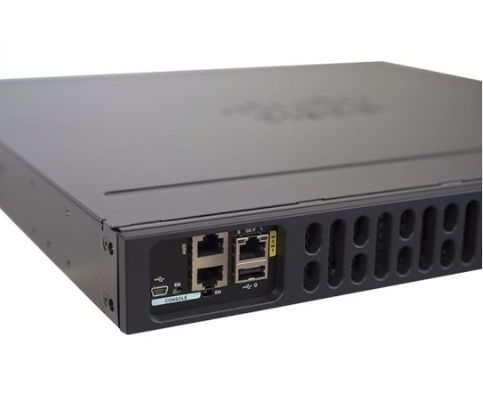

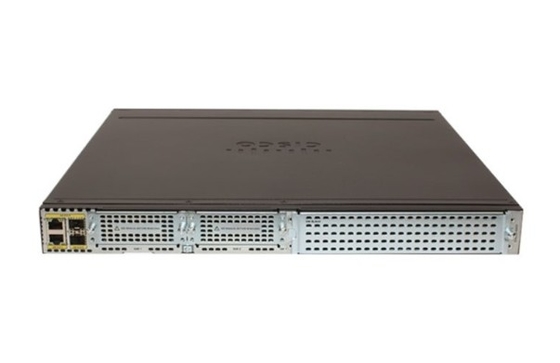

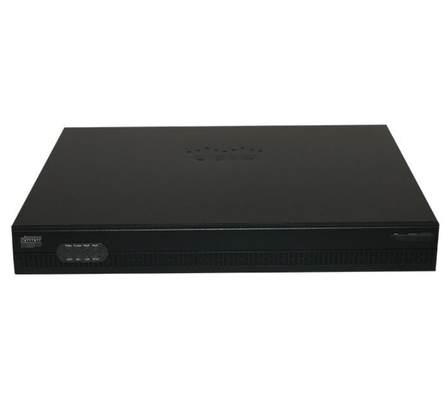

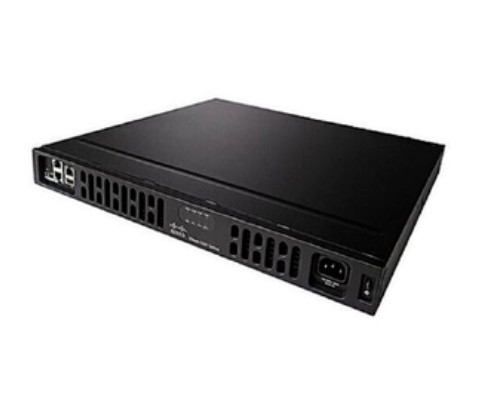

Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput by default. ISR4321-VSEC/K9 is the Cisco ISR 4321 router with Bundle w/UC & SEC License, and CUBE-10.
Table 2 shows some recommended modules, cards, and cables.
| Items | Models | Description |
| License | L-SL-4320-APP-K9= | Cisco AppX license L-SL-4320-APP-K9= with 200 conns/ISRWAAS or 750 conns/vWAAS |
| Console and Auxillary Cables | CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | |
| Network Interface Modules | NIM-2CE1T1-PRI | Cisco Multiflex Trunk Voice and WAN network interface module |
| NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
| NIM-4E/M | Analog voice network interface card (ear and mouth) | |
| NIM-2FXS | Cisco Analog voice network interface card NIM-2FXS | |
| NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
| SFPs for On-Board GE Ports | GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | |
| GLC-SX-M MD | Cisco GLC-SX-M MD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| Models | ISR4321-VSEC/K9 | ISR4321/K9 |
| Description | Cisco ISR 4321 Bundle w/UC & SEC License. CUBE-10 | Cisco ISR 4321 (2GE,2NIM,4G FLASH,4G DRAM,IP Base) |
| Aggregate Throughput | 50 Mbps to 100 Mbps | 50 Mbps to 100 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
2 | 2 |
| RJ-45-based ports | 2 | 2 |
| SFP-based ports | 1 | 1 |
| Enhanced service-module slots | 0 | 0 |
| NIM slots | 2 | 2 |
| Onboard ISC slot | 1 | 1 |
| Rack height | 1 | 1 |
ISR4321-VSEC/K9 Specification |
|
| Description | Cisco ISR 4321 Bundle w/UC & SEC License. CUBE-10 |
| Aggregate Throughput | 50 Mbps to 100 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
| Power-supply options | External: AC and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 36 |
| Maximum power with AC power supply (watts) | 125 |
| Maximum power with PoE power supply (platform only) (watts) | 260 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
