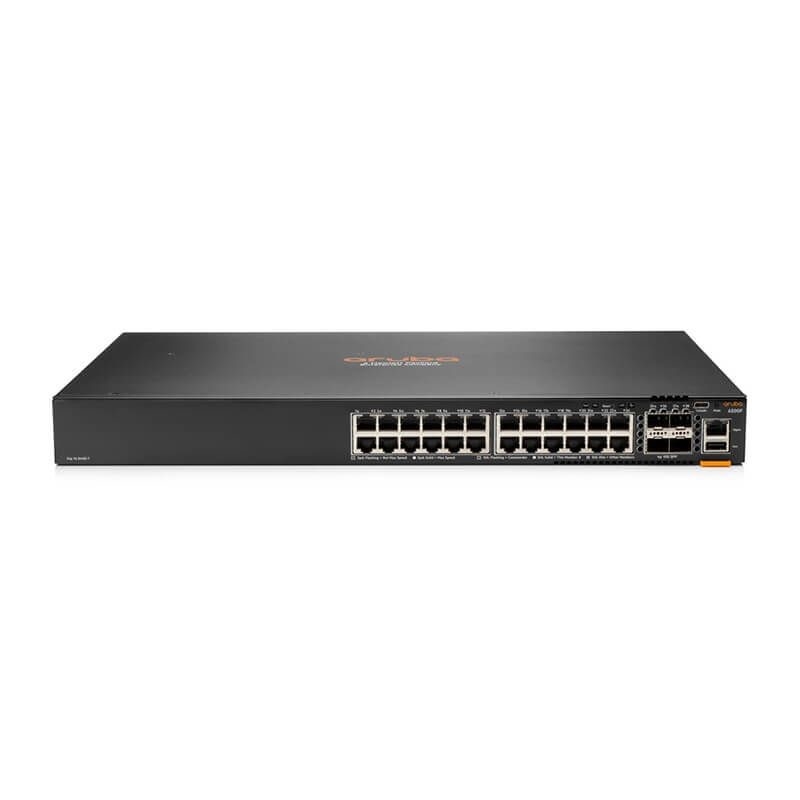

JL724A hpe 6200F Series Switch 6200F 24G 4SFP+ Switch in good price

C9115AXI-E Specification

● Cisco Unified Wireless Network Software Release 8.9 or later

● Cisco IOS ® XE Software Release 16.11 or later

● Cisco Catalyst 9800 Series Wireless Controllers

● Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller

● 4x4 MIMO with four spatial streams

● Maximal Ratio Combining (MRC)

● 802.11n and 802.11a/g beamforming

● 20- and 40-MHz channels

● PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)

● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

● 802.11 Dynamic Frequency Selection (DFS)

● Cyclic Shift Diversity (CSD) support

● 4x4 downlink MU-MIMO with four spatial streams

● MRC

● 802.11ac beamforming

● 20-, 40-, 80-, and 160-MHz channels

● PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)

● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

● 802.11 DFS

● CSD support

● 4x4 downlink MU-MIMO with four spatial streams

● Uplink/downlink OFDMA

● TWT

● BSS coloring

● MRC

● 802.11ax beamforming

● 20-, 40-, 80-, and 160-MHz channels

● PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)

● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

● 802.11 DFS

● CSD support

● 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth

● 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

● Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

● 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

● Management console port (RJ-45)

● USB 2.0 (enabled via future software)

● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)

● Cisco power injector, AIR-PWRINJ6=

● 802.3af PoE

● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off.

Cisco Catalyst 9115AXI

● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

● Operating temperature: 32° to 122°F (0° to 50°C)

● Operating humidity: 10% to 90% (noncondensing)

● Operating altitude test: 40˚C, 9843 ft.

Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.

Cisco Catalyst 9115AXE

● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

● Operating temperature: -4° to 122°F (-20° to 50°C)

● Operating humidity: 10% to 90% (noncondensing)

● Operating altitude test: 40˚C, 9843 ft.

● 2048 MB DRAM

● 1024 MB flash

2.4 GHz

● 23 dBm (200 mW)

● 20 dBm (100 mW)

● 17 dBm (50 mW)

● 14 dBm (25 mW)

● 11 dBm (12.5 mW)

● 8 dBm (6.25 mW)

● 5 dBm (3.13 mW)

● 2 dBm (1.56 mW)

● -1dBm (0.79mW)

● -4dBm (0.39mW)

5 GHz

● 23 dBm (200 mW)

● 20 dBm (100 mW)

● 17 dBm (50 mW)

● 14 dBm (25 mW)

● 11 dBm (12.5 mW)

● 8 dBm (6.25 mW)

● 5 dBm (3.13 mW)

● 2 dBm (1.56 mW)

● -1dBm (0.79mW)

● -4dBm (0.39mW)

E (E regulatory domain):

● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
