Product Details:
|
| Product Name: | Cisco Switch | Part Number: | C9300X 48TX E |
|---|---|---|---|
| Payment: | TT | Shipment: | DHL |
| Condition: | New | Warranty: | 1 Year |
| Keywords: | 48TX E | Lead Time: | 2-3 Days |
| High Light: | Managed Ethernet Network Essentials Switch,9300X Network Essentials Switch,48TX E Catalyst Network Essentials Switch |
||

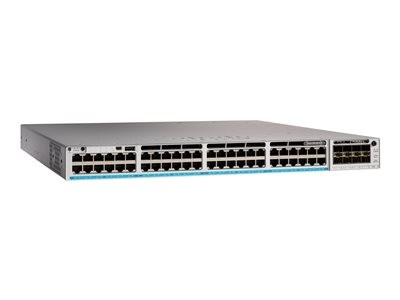

Cisco C9300X 48TX E Catalyst 9300X Network Essentials Switch Managed Ethernet
Description : CISCO Catalyst 9300x Network Essentials Switch 48 Ports Managed Rack-mountable
Device Type : Switch 48 Ports L3 Managed Stackable
Enclosure Type: Rack-mountable
Subtype : 10 Gigabit Ethernet
Ports : 48 X 100/1000/2.5g/5g/10gbase-t
Interfaces : 48 X 100/1000/2.5g/5g/10gbase-t Rj-45 1 X Usb 2.0
Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
Performance: Switching Capacity: 2000 Gbps Switching Capacity With Stacking:
3000 Gbps Forwarding Rate: 1488 Mpps Forwarding Rate With Stacking: 2232 Mpps
Capacity: Ipv4 Routing Table Entries:39000 Multicast Routes: 8000 Qos Scale Entries:
4000 Acl Scale Entries: 8000 Ipv6 Routing Table Entries: 19500 Packet Buffer Size:
16 Mb Fnf Entries: 64000 Vlan Ids: 4094 Switched Virtual Interfaces (svis): 1000
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Rip, Rip1, Rip2, Vrrp, Pim-sm, Static Ip Routing, Gre, Pim-ssm,
Policy-based Routing (pbr), Ripng, Mstp, Stp, Lisp
Remote Management Protocol : Snmp1, Rmon1, Rmon2, Snmp3, Snmp 2c,
Http, Cli, Netconf, Restconf, Grpc, Yang
Power Device : Internal Power Supply Hot-plug
Installed Qty : 1
Max Supported Qty : 2
Power Redundancy : Optional
Power Provided : 715 Watt
Voltage Required : Ac 100-240 V (50 - 60 Hz)
Dimensions (wxdxh) : 17.5 In X 22 In X 1.7 In
Weight : 14.59 Lbs
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10 GBase-X |
