Product Details:
|
| Model: | EX3400-48T | Ports: | 48-port 10/100/1000BASE-T With 4 SFP+ And 2 QSFP+ Uplink Ports |
|---|---|---|---|
| Backplane Speed: | 160 Gbps | Data Rate: | 336 Gbps |
| Throughput: | 250 Mpps (wire Speed) | Dimensions: | 17.4 X 1.7 X 13.8 In |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |
| High Light: | Redundant Fans EX3400-48T EX3400,Front To Back Airflow EX3400-48T EX3400,EX3400-48T EX3400 |
||

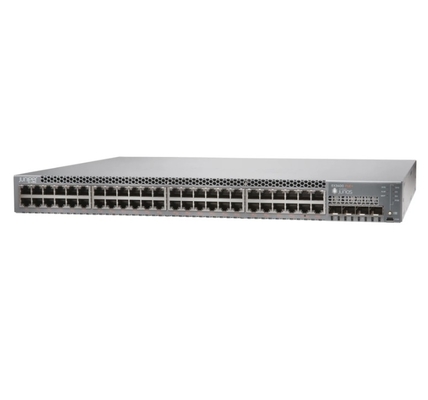

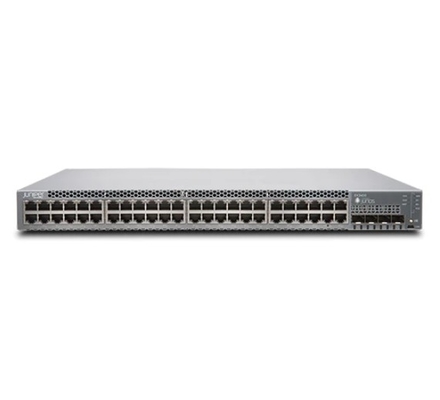

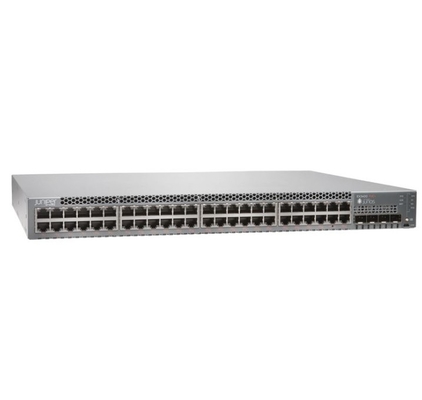

EX3400-48T is a Juniper EX3400 switch with 48-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
Table 1 shows the quick spec.
| SKU | EX3400-48T |
| Ports | 48-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Backplane speed | 160 Gbps |
| Data rate | 336 Gbps |
| Throughput | 250 Mpps (wire speed) |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
Table 2 shows the comparison.
| SKU | EX3400-24T | EX3400-24P | EX3400-48T | EX3400-48P |
| Ports | 24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) | 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) | 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+ | 48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Backplane speed | 160 Gbps | 160 Gbps | 160 Gbps | 160 Gbps |
| Data rate | 288 Gbps | 288 Gbps | 336 Gbps | 336 Gbps |
| Throughput | 214 Mpps (wire speed) | 214 Mpps (wire speed) | 250 Mpps (wire speed) | 250 Mpps (wire speed) |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
EX3400-48T Specification |
|
| Description | EX3400 48-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Form factor | Fixed platform Virtual Chassis configuration consisting of up to 10 switches Junos Fusion Enterprise Satellite device |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
| Backplane speed | 160 Gbps |
| Data rate | 336 Gbps |
| Throughput | 250 Mpps (wire speed) |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | 2 |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 unicast/4 multicast |
| MAC addresses | 32,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 36,000/4,000 |
| IPv6 unicast/multicast routes | 18,000/2,000 |
| Number of VLANs | 4,096 |
| ARP entries | 16,000 |
