Overview

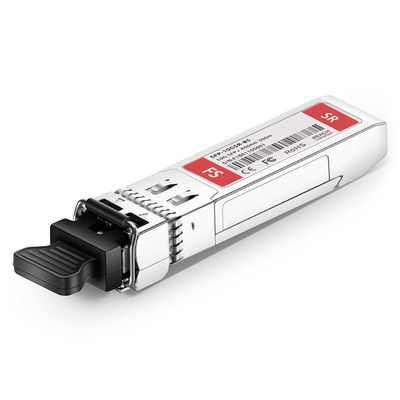

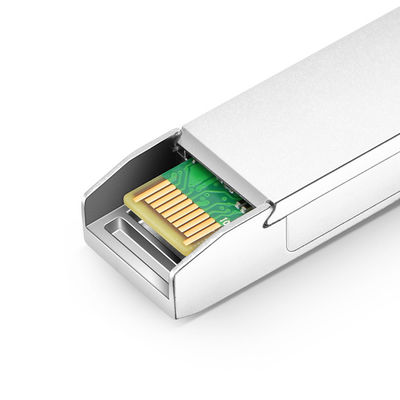

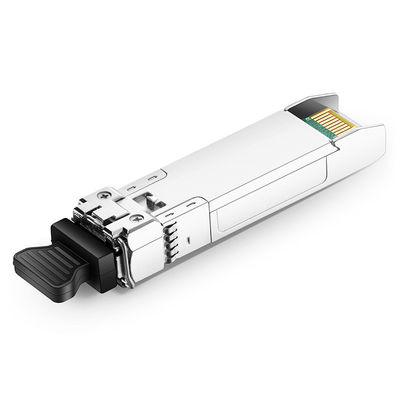

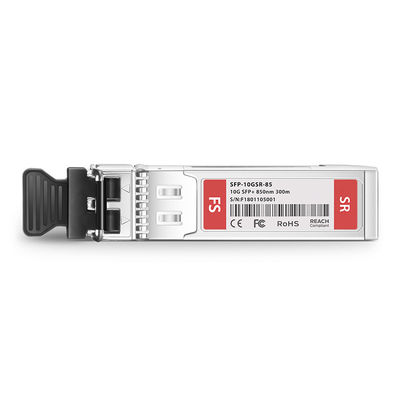

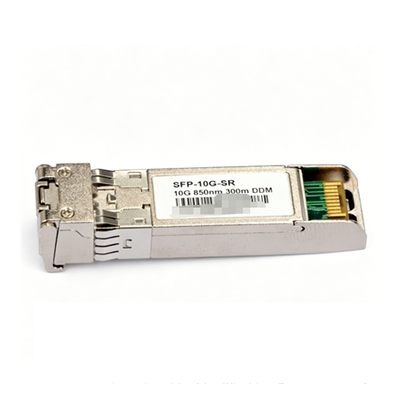

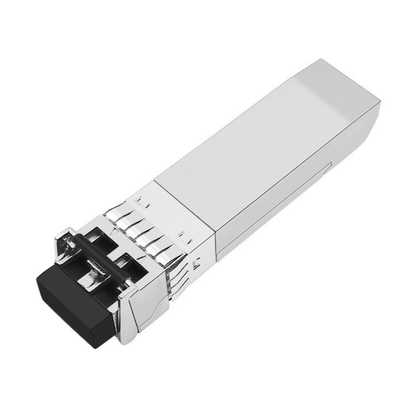

The SFP-10G-SR Cisco compatible SFP+ transceiver module is a high-performance, hot-swappable optical solution designed for 10Gbps short-reach data transmission over multimode fiber (MMF). It delivers stable and reliable connectivity for enterprise networks, data centers, and high-speed switching environments.
Compliant with IEEE 802.3ae 10GBASE-SR standards, this module ensures seamless interoperability with Cisco switches and other major networking platforms supporting SFP+ interfaces.
Key Features
- Data rate: 10Gbps (10GBASE-SR)
- Wavelength: 850nm VCSEL laser
- Fiber type: Multimode Fiber (MMF)
- Maximum transmission distance:
- Up to 300m on OM3 fiber
- Up to 400m on OM4 fiber
- Connector type: LC duplex
- Hot-pluggable SFP+ form factor
- Supports Digital Diagnostic Monitoring (DDM/DOM)
- Low power consumption and high reliability
- Fully compatible with Cisco networking equipment
Technical Specifications
| Parameter |
Description |
| Product Type |
SFP+ Optical Transceiver |
| Standard |
IEEE 802.3ae 10GBASE-SR |
| Data Rate |
10Gbps |
| Wavelength |
850nm |
| Fiber Type |
Multimode Fiber (MMF) |
| Max Distance |
300m (OM3), 400m (OM4) |
| Connector |
LC Duplex |
| Operating Temperature |
0°C to 70°C |
| DDM Support |
Yes |
Cisco Compatibility
This SFP-10G-SR Cisco compatible module is fully tested for use with a wide range of Cisco equipment, including:
- Cisco Catalyst Series switches (2960, 3560, 3650, 3850, 9300, 9500)
- Cisco Nexus Series (N3K, N5K, N7K)
- Cisco UCS servers with SFP+ ports
- Other IEEE 802.3ae-compliant 10G SFP+ devices
It is designed to operate seamlessly in mixed-vendor network environments where standard compliance is required.
SFP-10G-SR vs Other 10G Modules
SFP-10G-SR vs SFP-10G-LR
- SFP-10G-SR: Short range, multimode fiber (up to 400m)
- SFP-10G-LR: Long range, single-mode fiber (up to 10km)
✔ SR is ideal for data centers and campus networks
✔ LR is used for long-distance backbone connections
SFP-10G-SR vs SFP-10G-SR-S
- SR: Full-featured, broader compatibility
- SR-S: Ethernet-optimized version for cost-sensitive deployments
✔ SR offers better flexibility in enterprise networks
✔ SR-S is more cost-focused
Why Choose Compatible SFP Modules?
- Significant cost savings compared to OEM Cisco modules
- Same performance under IEEE standards
- Fully tested interoperability and stability
- Faster availability and global supply advantage
Applications
- Data center interconnects
- Enterprise LAN backbone upgrades
- Server-to-switch 10G connections
- Cloud infrastructure networks
- Storage area networks (SAN)
FAQ
Is this SFP-10G-SR compatible with Cisco switches?
Yes. It is fully compatible with Cisco Catalyst and Nexus switches that support SFP+ 10G ports.
What type of fiber cable is required?
This module uses multimode fiber (MMF) with LC-LC duplex connectors. OM3 or OM4 fiber is recommended.
What is the maximum distance supported?
- OM3 fiber: up to 300 meters
- OM4 fiber: up to 400 meters
Can Cisco original and compatible modules work together?
Yes. In most cases, they can operate together as long as both sides support the 10GBASE-SR standard.
Does it support DDM/DOM monitoring?
Yes. It supports real-time monitoring of temperature, voltage, optical power, and laser bias current.
What is the difference between SFP and SFP+?
- SFP: supports up to 1Gbps
- SFP+: supports up to 10Gbps
They are not physically or electrically interchangeable.
Quality Assurance
- 100% tested before shipment
- Fully compliant with MSA and IEEE standards
- Burn-in testing for stability and reliability
- Strict quality control process
- Technical support for compatibility verification
