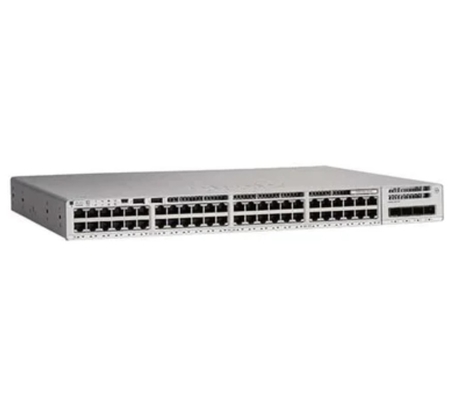

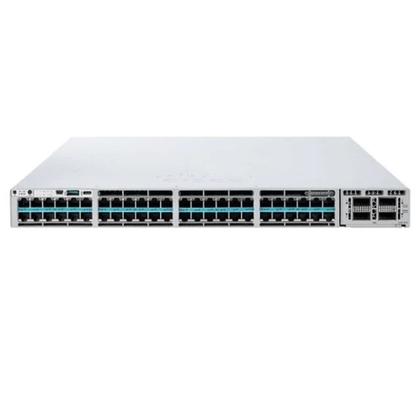

Large Image :  CISCO C9300X-48HX-E Cisco Catalyst 9300X Switch 48 Port MGig UPoE+ Network Essentials

Product Details:
Place of Origin: USA
Brand Name: Cisco
Certification: CE
Model Number: C9300X-48HX-E

CISCO C9300X-48HX-E Cisco Catalyst 9300X Switch 48 Port MGig UPoE+ Network Essentials

Description
Model: C9300X-48HX-E Device Type: Switch - 48 Ports - L3 - Managed - Stackable
Ports: 48 X 100/1000/2.5G/5G/10GBase-T (UPOE+) Power Over Ethernet (PoE): UPOE+
RAM: 16 GB Flash Memory: 16 GB
Dimension: 17.5× 22 × 1.7 In. Weight: 14.59 Lbs
Condition: Brand New Sealed Payment: T/T, Western Union, Paypal
Shipment: DHL, Fedex, UPS

Cisco C9300X-48HX-E 48-Port UPOE+ 10G Multigig (10G/5G/2.5G/1G) w/ 1100WAC-P

Description

Built to reimage connection, reinforce security and redefine experienceCisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small. With Catalyst 9300 switches, you choose how you want to manage your network – on-premise, virtual or from the cloud.The Cisco Catalyst 9300X-48HX-A is part of the Catalyst 9300 Series, designed to transform networks

CISCO C9300X-48HX-E Cisco Catalyst 9300X Switch 48 Port MGig UPoE+ Network Essentials 0



Specifications
General
Device Type
Switch - 48 ports - L3 - managed - stackable
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
48 x 100/1000/2.5G/5G/10GBase-T (UPOE+)
Power Over Ethernet (PoE)
UPOE+
PoE Budget
1690 W
Performance
Switching capacity: 2000 Gbps ¦ Switching capacity with stacking: 3000 Gbps ¦ Forwarding rate: 1488 Mpps ¦ Forwarding rate with stacking: 2232 Mpps
Capacity
IPv4 routing table entries: 39000 ¦ Multicast routes: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 8000 ¦ IPv6 routing table entries: 19500 ¦ Packet buffer size: 16 MB ¦ FNF entries: 64000 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Max Units In A Stack
8
Routing Protocol
OSPF, RIP, BGP-4, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, PIM-SM, static IP routing, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, policy-based routing (PBR), RIPng, MPLS, BGP for IPv6, MSTP, STP, LISP, IS-ISv4, mVPN
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG
Encryption Algorithm
128-bit AES, 256-bit AES
Features
VPN support, full duplex mode, Non-Stop Forwarding (NSF), Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Virtual Private LAN Service (VPLS), Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Ethernet Virtual Private Network (EVPN), TrustSec support, Ethernet over MPLS (EoMPLS), Blue Beacon LED, IP Security (IPSec) support, Zero-touch provisioning (ZTP), CoAP support, Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Network-Based Application Recognition (NBAR) 2, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, Cisco Discovery Protocol (CDP), Bootstrap Router (BSR) Mechanism, mDNS, Secure Unique Device Identification (SUDI), Preboot Execution Environment, Cisco StackWise-1T technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bz
RAM
16 GB
Flash Memory
16 GB
Built-in Devices
RFID tag
Status Indicators
Status
Expansion / Connectivity
Interfaces
48 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE+ - 90 W ¦ 1 x USB 2.0
Expansion Slots
1 (total) / 1 (free) x expansion slot
Power
Power Device
Internal power supply - hot-plug
Installed Qty
1
Max Supported Qty
2
Power Redundancy
Optional
Power Provided
1100 Watt
Voltage Required
AC 115-240 V (50 - 60 Hz)
80 PLUS Certification
80 PLUS Platinum
Miscellaneous
Compliant Standards
EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, CISPR 35, V-2/2015.04, V-3/2015.04
Dimensions & Weight
Width
17.5 in
Depth
22 in
Height
1.7 in
Weight
14.59 lbs
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
23 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 90% (non-condensing)





CISCO C9300X-48HX-E Cisco Catalyst 9300X Switch 48 Port MGig UPoE+ Network Essentials 1
