Product Details:
|
| Brand: | Juniper | Model: | EX4300-32F |
|---|---|---|---|
| Backplane Speed: | 320 Gbps (Virtual Chassis) | Data Rate: | 464 Gbps |
| Throughput: | 345 Mpps (wire Speed) | Dimensions: | 17.4 X 1.7 X 16.4 In |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |
| High Light: | 100/1000BASE-X Juniper EX4300-32F Ethernet Switches,32-port Ethernet Switches,2x40GBASE-X Ethernet Switches |
||

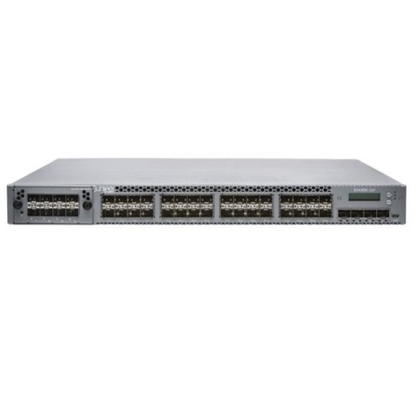

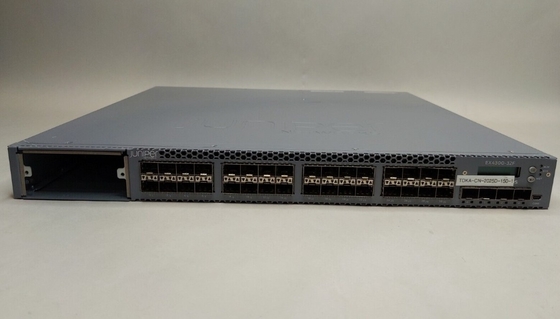

EX4300-32F is a Juniper EX4300 switch with 32-port 100/1000BASE-X SFP, 4x10GBASE-X SFP+, 2x40GBASE-X QSFP+, and 350 W AC PS (optics sold separately). EX4300 1 Gigabit Ethernet (1GbE) switches are compact, fixed-configuration platforms that can be deployed as standalone systems or as part of a Virtual Chassis, Virtual Chassis Fabric, or Junos Fusion switching architecture, satisfying a variety of high-performance campus and data center access needs.
| SKU | EX4300-48T | EX4300-32F |
| Description | 48-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis ordered separately) | 32-port 100/1000BASE-X SFP, 4x10GBASE-X SFP+, 2x40GBASE-X QSFP+, and 350 W AC PS (optics sold separately) |
| Backplane speed | 320 Gbps (Virtual Chassis) | 320 Gbps (Virtual Chassis) |
| Data rate | 496 Gbps | 464 Gbps |
| Throughput | 369 Mpps (wire speed) | 345 Mpps (wire speed) |
| Dimensions (W x H x D) |
17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit |
17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit |
EX4300-32F Specification |
|
| Description | Juniper EX4300 switch with 32-port 100/1000BASE-X SFP, 4x10GBASE-X SFP+, 2x40GBASE-X QSFP+, and 350 W AC PS (optics sold separately) |
| Form factor | Fixed platform Virtual Chassis configuration consisting of 10 switches |
| Dimensions (W x H x D) | 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit |
| Backplane speed | 320 Gbps (Virtual Chassis) |
| Data rate | 464 Gbps |
| Throughput | 345 Mpps (wire speed) |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | 4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis) |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 12 |
| MAC addresses | 64,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 32,000/8000 |
| IPv6 unicast/multicast routes | 18,000/4000 |
| Number of VLANs | 4093 |
| ARP entries | 64,000 |
