Product Details:
|
Model: | JL675A | Manageable: | Yes |
---|---|---|---|
Port / Expansion Slot Details: | 48 X Gigabit Ethernet PoE 4 X 10 Gigabit Ethernet Expansion Slot | PoE (RJ-45) Port: | Yes |
Dimensions: | 1.7×17.4×12 In. | Condition: | Brand New Sealed |
Warranty: | 1 Year | Lead Time: | 2-3 Days |
High Light: | Aruba 6100 Series Ethernet Switch,PoE 4SFP Switch,370W Ethernet Switch |
The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks.
JL675A provides these features:
Module | JL675A | JL678A |
Product Series | 6100 | 6100 |
Total Number of Network Ports | 48 | 24 |
Power Consumption | 45 W | 33 W |
Power Source | Power Supply | Power Supply |
JL675A Specification |
|

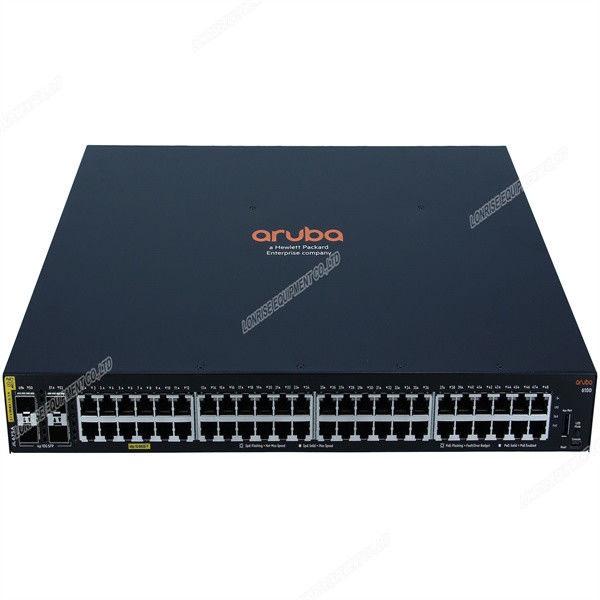

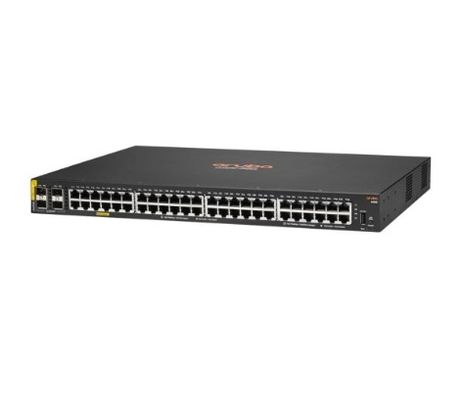

Product Name | Aruba 6100 48G CL4 4SFP+ Switch PL-W8 |
Manufacturer Part Number | JL675A |
Product Type | Ethernet Switch |
Manageable | Yes |
Ethernet Technology |
Gigabit Ethernet 10 Gigabit Ethernet |
Number of Total Expansion Slots | 4 |
Product Family | 6100 |
Media Type Supported |
Twisted Pair Optical Fiber |
Total Number of Network Ports | 48 |
PoE (RJ-45) Port | Yes |
Expansion Slot Type | SFP+ |
Form Factor |
Rack-mountable Wall Mountable |
Power Consumption | 45 W |
Power Source | Power Supply |
Layer Supported | 3 |
Environmentally Friendly | Yes |
Compatible Rack Unit | 1U |
Number of Power Supplies Supported | 1 |
Number of Power Supplies Installed | 1 |
Number of SFP+ Slots | 4 |
Modular | Yes |
Uplink Port | Yes |
Port / Expansion Slot Details |
48 x Gigabit Ethernet PoE 4 x 10 Gigabit Ethernet Expansion Slot |
PoE Budget | 370 W |
Height | 1.7" |
Width | 17.4" |
Depth | 12" |
Product Series | 6100 |
Network Technology |
10/100/1000Base-T 10GBase-X |
Input Voltage |
120 V 230 V |
Limited Warranty | Lifetime |
Frequency |
50 Hz 60 Hz |
