Product Details:
|
| Model: | IE-2000-8TC-G-l | RJ45 Ports: | 8 FE |
|---|---|---|---|
| Combo Ports: | 2 GE | Connectors And Cabling: | 10/100/1000BASE-T Ports: RJ-45 Connectors, 4-pair Category 5 UTP Cabling |
| Manufacturing License: | LAN Lite | Power Consumption: | 8-port Downlink Models: 12.5-20 W |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |

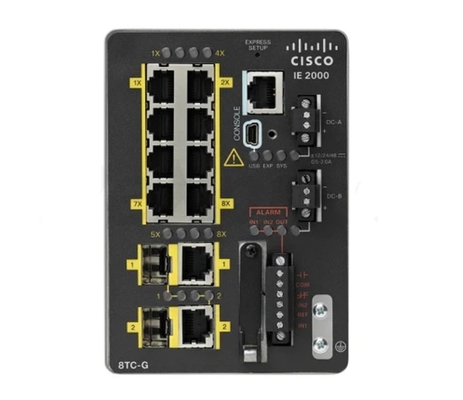

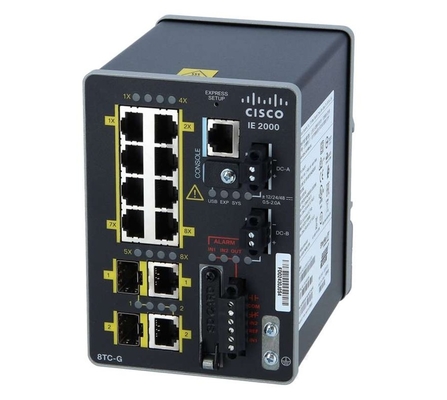

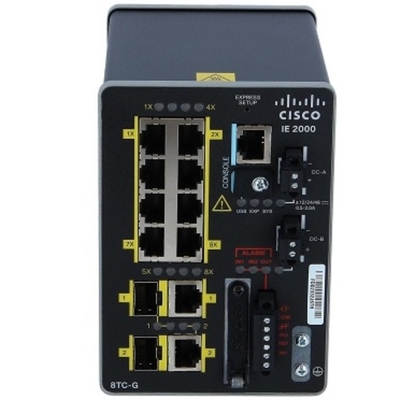

IE-2000-8TC-G-L is the IE2000 series 8 10/100, 2 T/SFP, and LAN Lite switch. The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:
1. Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor
2. Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
3. Dual-input DC power supply, alarm relays, DIN rail mount
4. Industrial Power over Ethernet (PoE) solution
5. Conformal coating available
6. Swappable SD flash card and mini-USB connector
7. Industrial environmental compliance and certifications
8. Industrial partner applications: Ethernet/IP and PROFINET
| Part Number | IE-2000-8TC-G-L | IE-2000-8TC-G-B |
| Total Ports | 10 | 10 |
| RJ45 ports | 8 FE | 8 FE |
| Combo Ports | 2 GE | 2 GE |
| Manufacturing license | LAN Lite | LAN Base |
IE-2000-8TC-G-L Specification |
|
| Physical Specification | |
| Total Ports | 10 |
| RJ45 Ports | 8 FE |
| Combo Ports | 2 GE |
| Manufacturing license | LAN Lite |
| Power consumption | 8-port downlink models: 12.5-20 W |
| Hardware |
● 256 MB DRAM with ECC memory ● IEEE 1588v2 FPGA ● 64 MB on-board flash memory ● 1GB removable SD flash memory card (optional) ● Mini-USB connector |
| Alarm | ● Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Connectors and cabling | ● 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| IE2000 Software Features | |
| LAN Lite license | Baseline features |
| Layer 2 switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2) |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session |
| Multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Management | Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog |
| Industrial Ethernet | EtherNet/IP, Profinet v2 |
| LAN Base license | Additional features |
| Layer 2 switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
| Security | IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL) |
| Quality of service | IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
| Management | Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| IPv4 routing | IPv4 static routing |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Enhanced LAN Base | Additional features |
| Industrial management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| IP Lite license | Additional features |
| IPv4 routing | RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode. |
| IPv6 Routing | IPv6 Static routing, OSPFv3 |
| Security | FIPS 140-2 |
| Embedded Event Manager | EEM feature enabled with IP Lite license |
| DNA Essentials | Additional features |
| Cisco DNA Center | Discovery, topology, inventory, software image management |
| Visibility | DNA assurance, Device 360 |
| Day-zero network bring-up automation | Cisco Network Plug-and-Play application |
