Product Details:
|
Model: | AirEngine 5760-51 | Port: | 1 X 5 GE And 1 X GE Electrical |
---|---|---|---|
IoT: | Built-in IoT Slots | Basic Capability: | Up To 5.37 Gbit/s |
RTU License Upgrade: | Up To 5.95 Gbit/s | Antenna Type: | Built-in Smart Antennas |
Dimensions (Diameter X Height): | 220 Mm X 50 Mm | Condition: | Brand New Sealed |
Warranty: | 1 Year | Payment: | T/T, Western Union, Paypal |
Shipment: | DHL, Fedex, UPS |

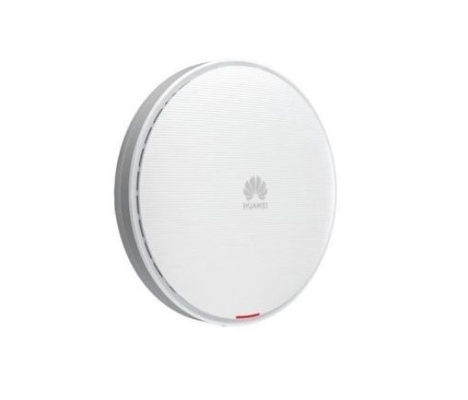

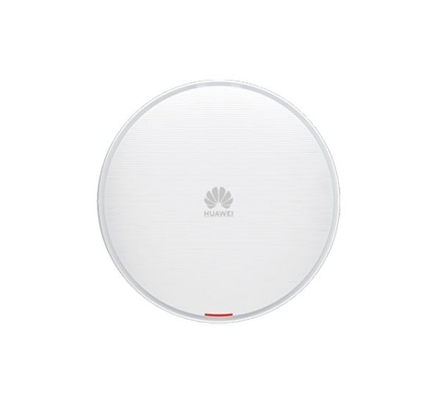

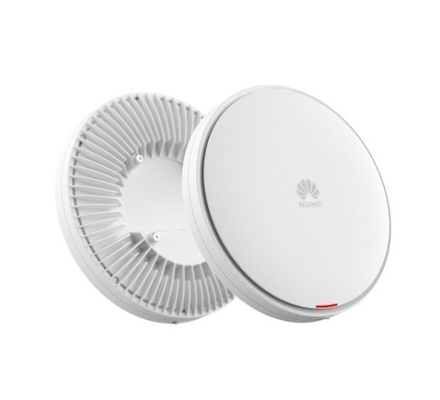

Huawei AirEngine 5760-51 Access point provides Software-Defined Radio (SDR) and flexible switching between dual-radio and triple-radio modes and it is a next generation Wi-Fi 6 (802.11ax) indoor Access Point (AP) that excels at handling high performance and high-density scenarios.
Model | AirEngine 5760-51 | AirEngine 5760-10 |
Power Input | DC: 48 V ± 10% PoE power supply: in compliance with IEEE 802.3bt |
DC: 12 V ± 10% PoE: In compliance with IEEE 802.3at |
Maximum Number of Users | ≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment. |
≤ 512 Note: The actual number of users varies according to the environment. |
Antenna Type | Built-in Smart Antennas | Built-in smart antennas |
Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax | 802.11a/b/g/n/ac/ac Wave 2/11ax |
Maximum Data Rate | Basic capability: up to 5.37 Gbit/s RTU license upgrade: up to 5.95 Gbit/s |
1.775 Gbit/s |
AirEngine 5760-51 Specification |
|
Dimensions (Diameter x Height) | 220 mm x 50 mm |
Power Input | DC: 48 V ± 10% PoE power supply: in compliance with IEEE 802.3bt |
Maximum Number of Users | ≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment. |
Port | 1 x 5 GE and 1 x GE electrical |
IoT | Built-in IoT slots |
Operating Temperature | –10°C to 50°C |
Antenna Type | Built-in Smart Antennas |
MIMO: Spatial Streams | Basic capability: 2.4 GHz: 2x2:2; 5 GHz: 4x4:4 2.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 2x2:2 Capability upgrade via RTU license: 2.4 GHz: 4x4:4; 5 GHz: 4x4:4 2.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 4x4:4 |
Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
Maximum Data Rate | Basic capability: up to 5.37 Gbit/s RTU license upgrade: up to 5.95 Gbit/s |
