Condition:	Original New	Warranty:	1 Year
Lead Time:	1-2 Days	Application:	Indoor
Type:	Telecom	MOQ:	1 PCS
Brand:	Nokia	Product Status:	Stock
High Light:	473098A BBU RRU , Flexi AirScale Subrack BBU RRU

Product Code	C9300-24T-E	C9300-24P-A
Product Description	Catalyst 9300 24-port data only, Network Essentials	Catalyst 9300 24-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports	24	24 POE+
Default AC power supply	350W AC	715W AC
Available PoE power	--	445W
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds	16.33 Pounds

C9300-24T-E Specification
Part Number	C9300-24T-E
Product Description	Catalyst 9300 24-port data only, Network Essentials
Total 10/100/1000 or Multigigabit copper ports	24
Default AC power supply	350W AC
Available PoE power	--
Cisco StackWise-480	Yes
Cisco StackPower	Yes
Default power supply	PWR-C1-350WAC-P/2
Switching capacity	208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth	480 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	32,000
IPv6 routing entries	16,000
Multicast routing scale	8000
QoS scale entries	5120
ACL scale entries	5120
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	2000
Jumbo frames	9198 bytes
Total routed ports per 9300 Series stack	208
Wireless bandwidth per switch	Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate	154.76 Mpps
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds
Mean time between failures (hours)	299,000
Safety certifications	● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3
Electromagnetic emissions certifications	● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317
Environmental

item	value
Model Number	AMIA
Type	Building Base band Unite
Place of Origin	China
	Shanghai
Brand Name	Nokia
Application	Building Base band Unite

C1000-48P-4G-L	C9500-NM-8X	CAB-SPWR-30CM
C1000-48T-4G-L	C9800-F-X-K9	C9200L-STACK-KIT
WS-C2960X-24TS-LL	N9K-C93180YC-FX	PWR-C4-950WAC-R
WS-C2960X-24PSQ-L	N3K-C3172PQ-XL	C9200-NM-4G
WS-C2960X-24PS-L	N2K-C2348UPQ	C9200-NM-4X
WS-C2960X-48TS-L	AIR-AP1832I-H-K9	C9300-NM-4G
WS-C2960L-24PS-AP	AIR-AP2802I-H-K9	C9300-NM-8X
WS-C2960L-16TS-LL	C9115AXI-H	GLC-LH-SMD
WS-C2960L-8TS-LL	C9120AXI-H	SFP-10G-SR
WS-C3560-48FS-S	AIR-AP1562I-H-K9	SFP-10G-LR
WS-C2960X-24PS-L	AIR-AP1562D-H-K9	SFP-10G-SR-S
C9200L-48P-4X-E	C9800-L-C-K9	SFP-10G-LR-S
C9200L-48P-4G-E	C9800-L-F-K9	GLC-TE
C9200L-24T-4G-E	AP505	SFP-H10GB-CU2M
C9300-24T-A	AP515	MA-CBL-40G-3M
C9300-48T-A	CP-3905	GLC-LH-SMD=
C9300-24S-A	CP-7821-K9	ISR4331/K9
C9300-48S-A	CP-8832-MIC-WIRED	ISR4331/K9 RF
C9300-48P-E	CS-MIC-TABLE-J	FPR2110-ASA-K9
C9300-24P-E	AIR-AP3802I-E-K9	FPR2110-ASA-K9
C9300L-24T-4G-E	C1111-8P	FPR2120-ASA-K9
C9300L-48T-4G-E	PWR-C5-125WAC	FPR2130-ASA-K9
C9300-NM-8X	PWR-C5-1KWAC	C9200-NM-4G=
C9400-LC-24S	PWR-C6-125WAC	C9200-NM-4G=
C9400-LC-48S	STACK-T1-50CM	C9200L-24P-4G-CE
C9500-24Y4C-A	STACK-T1-1M	C9200L-24P-4G-CE
C9500-48Y4C-A	STACK-T1-3M	C9200L-48P-4G-E

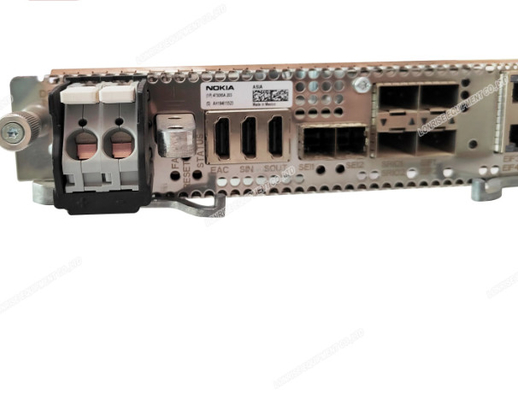

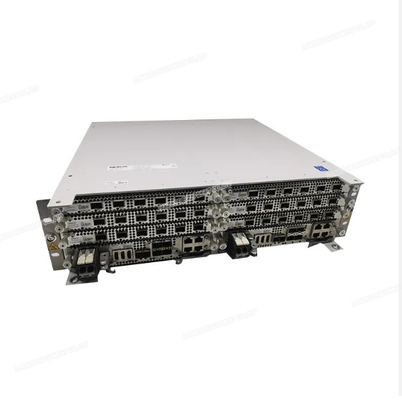

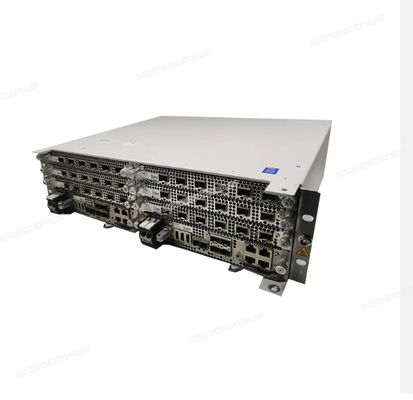

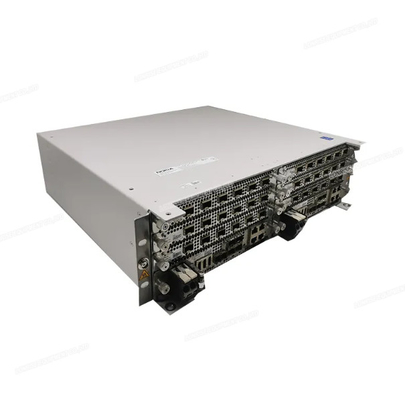

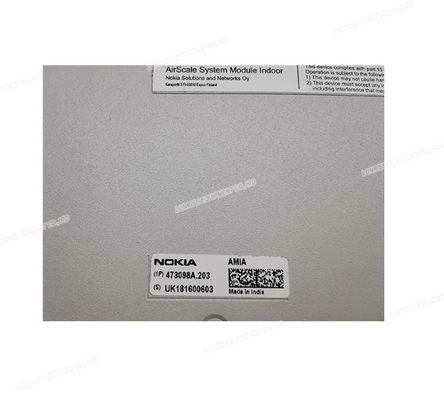

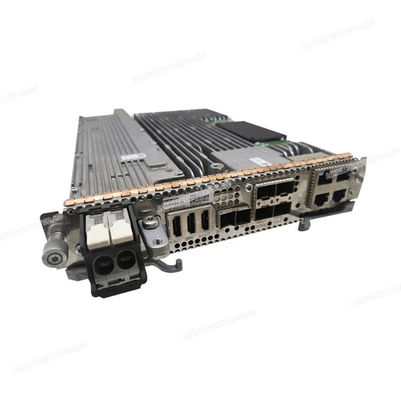

300pcs Instock NSN Nokia AMIA Communication Flexi AirScale Subrack BBU RRU Nokia AMIA 473098A

300pcs Instock NSN Nokia AMIA Communication Flexi AirScale Subrack BBU RRU Nokia AMIA 473098A

300pcs Instock NSN Nokia AMIA Communication Flexi AirScale Subrack BBU RRU Nokia AMIA 473098A

473098A BBU RRU

Flexi AirScale Subrack BBU RRU

Compare to Similar Items

Get More Information

C9300-24T-E Specification

C9300-24T-E Specification

NOKIA AMIA Overview
