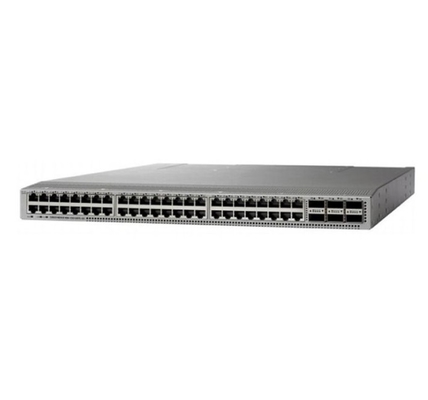

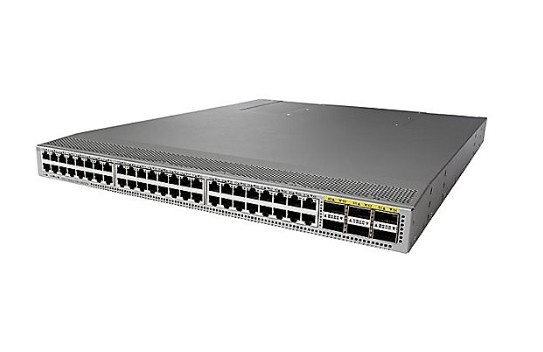

N9K-C9372TX Nexus 9372tx Managed L3 Switch - 48 10gbase-T Ports And 6 40-Gigabit Qsfp+ Uplink Ports

N9K-C9372TX Overview

The Cisco N9K-C9372TX is a part of the Cisco Nexus 9000 Series switches, designed for high-performance data center and enterprise networking. Here are the key features and specifications:

Key Features

• Ports:

  • Offers 48 10/100/1000 Ethernet ports, suitable for high-density connectivity.
  • 6 additional fixed 40 Gigabit Ethernet ports for uplinks.

• Performance:

  • Provides high throughput and low latency, making it ideal for data-intensive applications and environments.

• Layer 2 and Layer 3 Support:

  • Supports both Layer 2 switching and Layer 3 routing, enabling flexible network design and management.

• Scalability:

  • Designed for easy scaling in data center environments, supporting large virtualized workloads.

• Operating Systems:

  • Can run on Cisco NX-OS, providing advanced features for data center networking.

Specifications

• Form Factor:

  • 1 RU (Rack Unit) form factor, making it space-efficient for data centers.

• Power Supplies:

  • Supports redundant power supplies for high availability.

• Management:

  • Provides various management options, including CLI, SNMP, and integration with Cisco ACI (Application Centric Infrastructure).

Use Cases

• Data Centers: Ideal for use in data center environments requiring high performance and reliability.
• Enterprise Networks: Suitable for enterprise core and aggregation layers, supporting both traditional and cloud-based applications.

Cisco Nexus 9372TX Switch(N9K-C9372TX) is a 1RU switch that supports 1.44 Tbps of bandwidth and over 1150 mpps across 48 fixed 10-Gbps BASE-T ports and 6 fixed 40-Gbps QSFP+ ports.



Compare to Similar Items

The comparison of the N9K-C9372TX and N9K-C9372PX.

Product Code	N9K-C9372TX	N9K-C9372PX
Ports	48 fixed 1/10GBASE-T and 6 QSFP+ ports	48 fixed 1/10GBASE-T and 6 QSFP+ ports
Form factor	1 RU	1 RU
Throughput (Tbps)	1.44	1.44
Supported speeds	100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds	1/10 Gigabit Ethernet speeds
Typical power(AC & DC)	374.5W	210W
Maximum power(AC & DC)	694W	537W
Maximum number of longest prefix match (LPM) routes	128,000	128,000
Acoustics	48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed	48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dB at 100% fan speed
Weight(without power supplies or fans)	22.6 lb (10.25 kg)	22.2 lb (10.1 kg)



N9K-C9372TX Specification

N9K-C9372TX Specification
Ports	48 fixed 1/10GBASE-T and 6 QSFP+ ports
Supported speeds	100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds
40 Gigabit Ethernet uplink port	6 fixed QSFP+ ports
	Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber.
	The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations.
Power supplies (up to 2)	650W AC, 930W DC, or 1200W HVAC/HVDC
Typical power*(AC & DC)	374.5W
Maximum power* (AC & DC)	694W
Input voltage (AC)	100 to 240V
Input voltage (HVAC)	200 to 277V
Input voltage (DC)	-40V to -72V DC (min-max) -48V to -60V DC (nominal)
Input voltage (HVDC)	–240 to –380V
Frequency (AC)	50 to 60 Hz
Fans	4
Physical (H x W x D)	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1cm)
Acoustics	48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed
RoHS compliance	Yes
Product Specifications
Maximum number of longest prefix match (LPM) routes	128,000*
Maximum number of IP host entries	208,000*
Maximum number of MAC address entries	96,000*
Number of multicast routes	● 32,000 (without virtual PortChannel [vPC]) ● 32,000 (with vPC)
Number of Interior Gateway Management Protocol (IGMP) snooping groups	● 32,000 (without vPC) ● 32,000 (with vPC)
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch	16
Number of access control list (ACL) entries	● 4000 ingress ● 1000 egress
Maximum number of VLANs	4096
Maximum number of Virtual Routing and Forwarding (VRF) instances	1000
Maximum number of links in a PortChannel	32
Maximum number of ECMP paths	64
Maximum number of PortChannels	528
Number of active SPAN sessions	4
Maximum number of Rapid per-VLAN Spanning Tree (RPVST) instances	507
Maximum number of Hot-Standby Router Protocol (HSRP) groups	490
Maximum number of Multiple Spanning Tree (MST) instances	64
Maximum number of VXLAN tunnel endpoints (VTEP)	256
Environmental Properties
Operating temperature	32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature	-40 to 158°F (-40 to 70°C)
Humidity	5 to 95% (noncondensing)
Altitude	0 to 13,123 ft (0 to 4000m)
Weight
Cisco Nexus 9372PX/9372PX-E without power supplies or fans	22.2 lb (10.1 kg)
Cisco Nexus 9372TX/9372TX-E without power supplies or fans	22.6 lb (10.25 kg)
Safety and EMC
Regulatory compliance	Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC
Safety	● UL 60950-1 Second Edition ● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943
EMC: Emissions	● 47CFR Part 15 (CFR 47) Class A ● AS/NZS CISPR22 Class A ● CISPR22 Class A ● EN55022 Class A ● ICES003 Class A ● VCCI Class A ● EN61000-3-2 ● EN61000-3-3 ● KN22 Class A ● CNS13438 Class A
EMC: Immunity	● EN55024 ● CISPR24 ● EN300386 ● KN 61000-4 series
RoHS	The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors
