Product Details:
|
Part Number:: | N9K-C93128TX | Ports: | 96 Fixed 1/10GBASE-T Ports |
---|---|---|---|
Supported Speeds: | 100 Megabit Ethernet And 1/10 Gigabit Ethernet Speeds | 40 Gigabit Ethernet Uplink Ports: | 6 Or 8 QSFP+ Ports Active Through The Uplink Module |
Physical (H X W X D): | 5.3 X 17.5 X 22.5 In. (13.3 X 44.5 X 57.1 Cm) | Weight: | 32.56 Lb (14.8 Kg) (without Power Supplies, Fans, Or Uplink Module) |
Power Supplies (up To 2): | 930W DC, Or 1200W HVAC/HVDC | Input Voltage (HVAC): | 200 To 277V |
High Light: | Rack Mountable Layer 3 Switch,Cisco Nexus 93128TX Layer 3 Switch,N9K-C93128TX GE Switch |

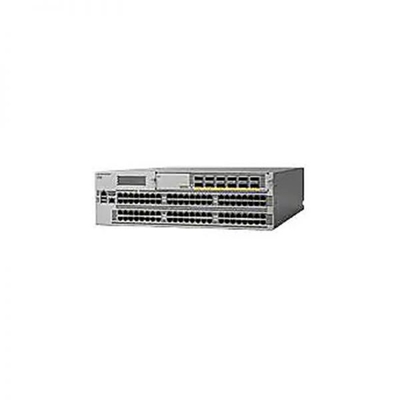

N9K-C93128TX is the Nexus 9300 with 96p 100M/1/10G-T and 8p 40G QSFP. The Cisco Nexus 9300 platform consists of fixed-port switches designed for top-of-rack (ToR) and middle-of-row (MoR) deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments. They are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 terabits per second (Tbps) of internal bandwidth.
N9K-C93128TX Specification |
|
Ports | 96 fixed 1/10GBASE-T ports |
Supported speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
40 Gigabit Ethernet uplink ports | 6 or 8 QSFP+ ports active through the uplink module |
Customers have the choice of either N9K-M6PQ or N9K-M12PQ for 40 Gigabit Ethernet uplink connectivity to aggregation or spine switches. | |
100 Gigabit Ethernet uplink ports | Customer can have 100 Gigabit Ethernet uplink connectivity to spine switches or routers through the N9K-M4PC- uplink module, with CPF2 optics as well as the Cisco CPAK®100-Gbps module through converters. |
The N9K-M4PC-CFP2 offers 5 MB of additional buffer space for each port. | |
Power supplies (up to 2) | 930W DC, or 1200W HVAC/HVDC |
Typical power (AC) | 582W |
Maximum power (AC) | 853W |
Input voltage (AC) |
100 to 120V (maximum output 800W) 200 to 240V (maximum output 1200W) |
Input voltage (HVAC) | 200 to 277V |
Input voltage (DC) | –48 to –60V |
Input voltage (HVDC) | –240 to –380V |
Frequency (AC) | 47 to 63 Hz |
Fans | 3 |
Physical (H x W x D) | 5.3 x 17.5 x 22.5 in. (13.3 x 44.5 x 57.1 cm) |
Acoustics | 71.4 dBA at 40% fan speed, 80.2 dBA at 70% fan speed, and 85.7 dB at 100% fan speed |
RoHS compliance | Yes |
Weight | 32.56 lb (14.8 kg) (without power supplies, fans, or uplink module) |
