Product Details:
|
| Model: | WS-C2960L-24PQ-LL | Ports: | 24 X 10/100/1000 Ethernet PoE+ Ports, 4 X 1G SFP Uplinks |
|---|---|---|---|
| DRAM: | 512 MB | Flash Memory: | 256 MB |
| Dimensions: | 1.73 X 10.45 X 17.5 In. | Net Weight: | 7.39 Lb |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Lead Time: | 2-4 Days | Payment: | T/T, Western Union, Paypal |
| Shipping: | DHL, Fedex, UPS | ||
| High Light: | SFP+ Lan Lite Cisco Ethernet Switch,WS-C2960L-24PQ-LL,Catalyst 2960L Cisco Switch |
||

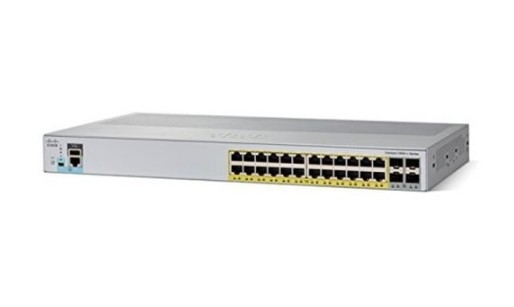

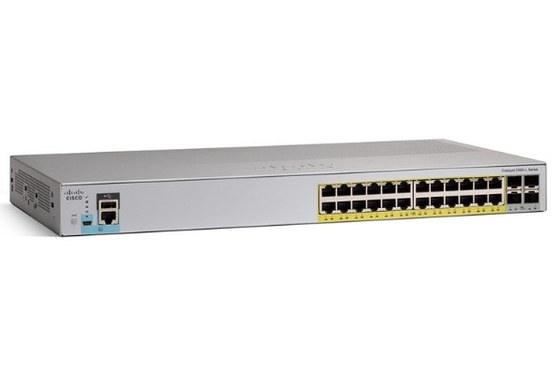

WS-C2960L-24PQ-LL offering 24 port GigE PoE+. 4x10G SFP+. and Lan Lite, is one of the Cisco Catalyst 2960-L Series Switches. These 2960-L switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisco IOS Software features.
| Model | WS-C2960L-24PQ-LL | WS-C2960L-24PS-LL |
| IOS | LAN Lite | LAN Lite |
| Forwarding bandwidth | 64 Gbps | 28 Gbps |
| Switching bandwidth | 128 Gbps | 56 Gbps |
| 10/100/1000 Ethernet Ports | 24 | 24 |
| Available PoE Power | N/A | 195W |
| Uplink Interfaces | 4 x 10G SFP | 4 x 1G SFP |
WS-C2960L-24PQ-LL Specification |
|
| Configurations | |
| 10/100/1000 Ethernet Ports | 24 |
| Uplink Interfaces | 4 SFP |
| Available PoE Power | 195W |
| Fanless | Y |
| Dimensions (H x D x W) | 1.73 x 10.45 x 17.5 in. (4.4 x 26.5 x 44.5 cm) |
| Net Weight | 7.39 lb (3.35 kg) |
| Console Ports | |
| RJ45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
| Memory and Processor | |
| CPU | ARMv7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 64 Gbps |
| Switching bandwidth | 128 Gbps |
| Forwarding rate (64-byte L3 packets) | 41.67 Mpps |
| Unicast MAC addresses | 8K |
| Maximum active VLANs | 64 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 1 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| MTBF in hours (Data) | 2,412,947 |
| MTBF in hours (PoE) | 909,838 |
| Environment | |
| Operating temperature | |
| Up to 5,000 ft | 23ºF to 113ºF (–5ºC to 45ºC) |
| Up to 10,000 ft | 23ºF to 104ºF (–5ºC to 40ºC) |
| Operating altitude | 10,000 ft (3000m) |
| Operating relative humidity | 5% to 90% at 40ºC |
| Storage temperature | –13º to 158ºF (–25º to 70ºC) |
| Storage altitude | 15,000 ft (4500m) |
| Storage relative humidity | 5% to 95% at 65ºC |
| Storage altitude | Minimum ambient temperature for cold start is 0°C (32°F) |
| Electrical | PoE |
| Voltage (autoranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.21A to 0.26A |
| Power rating (maximum consumption) | 0.24 kVA |
|
Power consumption (watts) 0% traffic 10% traffic 100% traffic Weighted average |
25.9 32.9 32.9 30.6 |
| Safety and Compliance | |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
| EMC: emissions | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
| EMC: immunity | EN55024, CISPR24, EN300386, KN24 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | USGv6 and IPv6 Ready Logo |
| Connectors and Interfaces | |
| Ethernet interfaces | 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling |
| 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling | |
| 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling | |
| 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling | |
| Indicator LEDs | Per-port status: link integrity, disabled, activity, speed, and full duplex |
| System status: system, PoE, and link speed | |
| Console cables | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 |
| CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors | |
| Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
