Product Details:
|
| Model: | ISR4331-SEC/K9 | System Throughput: | 100Mbps - 300Mbps |
|---|---|---|---|
| Flash Memory Installed: | 4 GB | Max Flash Memory Supported: | 16 GB |
| Frequency: | 50/60 Hertz | Dimensions: | 1.8 X 17.2 X17.2 Inch |
| Condition: | Brand New | Warranty: | 1 Year |
| Payment: | TT, Western Union, Paypal | Transportation: | DHL, Fedex, UPS |
| Shipping: | 5-7 Days |

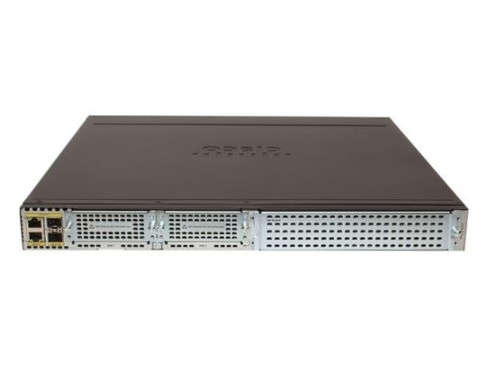

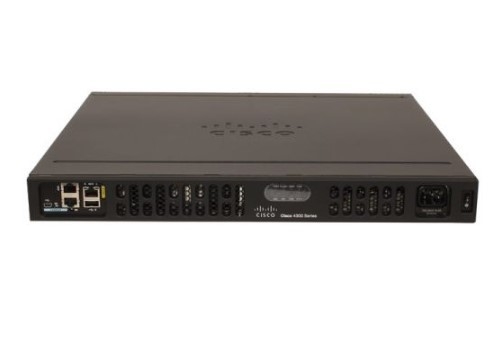

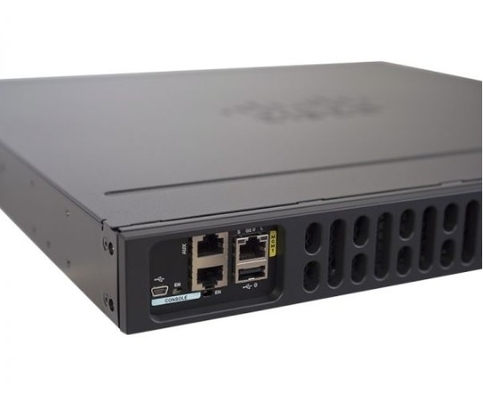

Cisco ISR4331-SEC/K9 is the Cisco ISR4331/k9 router with Security Bundle. It is a highly advanced router that offers exceptional performance and versatility. With a system throughput of 100Mbps-300Mbps, this router ensures smooth and seamless network connectivity. It features 3 WAN/LAN ports, 2 SFP ports, and a multi-Core CPU, making it perfect for small to medium-sized businesses.
| Models | Cisco ISR4331/K9 | ISR4331-SEC/K9 |
| Bundle | None | Security Bundle |
| Aggregate Throughput | 100 Mbps to 300 Mbps | 100 Mbps to 300 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
3 | 3 |
| RJ-45-based ports | 2 | 2 |
| SFP-based ports | 2 | 2 |
| Enhanced service-module slots | 1 | 1 |
| NIM slots | 2 | 2 |
| Onboard ISC slot | 1 | 1 |
| Rack height | 1 | 1 |
Cisco ISR4331-SEC/K9 Specification |
|
| Type | Cisco ISR4331/K9 with Security Bundle |
| Aggregate Throughput | 100 Mbps to 300 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service-module slots | 1 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 16 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
| Power-supply options | Internal: AC and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 3 to 1.3A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) (watts) | 42 |
| Maximum power with AC power supply (watts) | 250 |
| Maximum power with PoE power supply (platform only) (watts) | 530 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 250 |
