Product Details:
|
| Transceiver Form Factor: | SFP+ | Transmission Speed: | 10 Gbit/s |
|---|---|---|---|
| Center Wavelength: | 850 Nm | Standard Compliance: | 10Gbase-USR |
| Connector Type: | LC | Pack Dimension: | 145mm*80mm*35mm |
| Condition: | Original New | Warranty: | 1 Year |
| Lead Time: | 2-3 Days | Payment: | TT, Western Union, Paypal |
| High Light: | 850nm Optical Multi Mode Module,10GBase-USR Optical Transceiver,SFP-10G-USR |
||

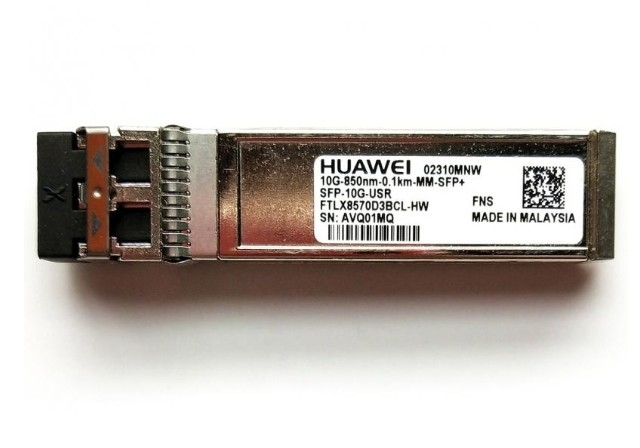

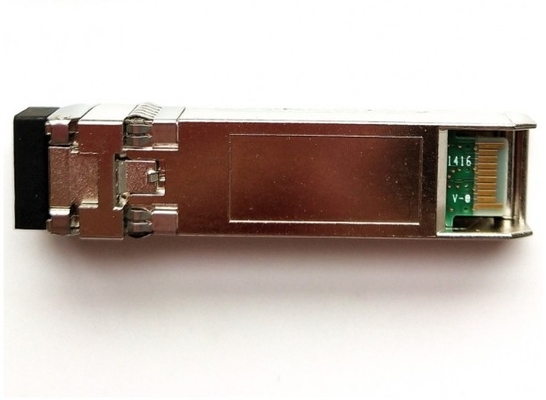

Huawei SFP-10G-USR is a 10GBase-USR Optical Transceiver. It’s a Multi-mode Module.
SFP-10G-USR Specification |
|
| Transceiver form factor | SFP+ |
| Transmission speed | 10 Gbit/s |
| Center wavelength (nm) | 850 |
| Standard compliance | 10Gbase-USR |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Multimode fiber (OM3): 0.1 km |
| Transmit power (dBm) | -7.3 to -1.0 |
| Maximum receiver sensitivity (dBm) | -10.7 |
| Overload power (dBm) | 0.5 |
| Extinction ratio (dB) | 3.0 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 145 x 80 x 35 |
