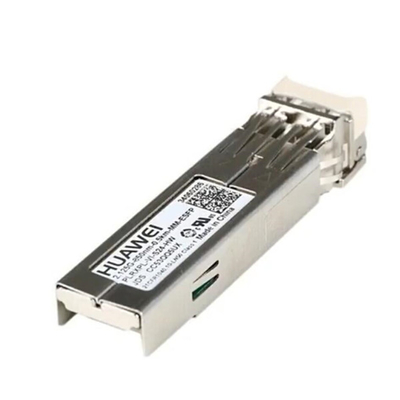

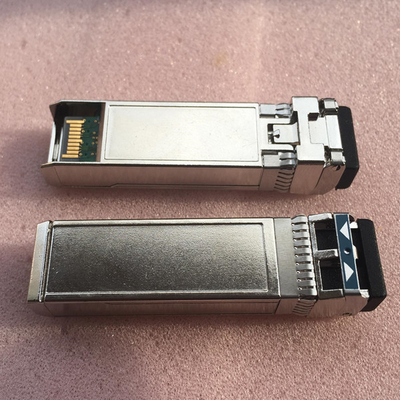

Optical module-SFP+-10G-multimode module (1310nm, 0.22km, LC, LRM). SFP+ is a major standard protocol for 10G pluggable optical modules. Typical wavelengths are 850 nanometers, 1310 nanometers, and 1550 nanometers. They also support CWDM and DWDM wavelength division multiplexing wavelengths. They are mainly used in 10G SDH optical transmission network, 10G fiber channel, 10G Ethernet and other fields. SFP+ has a digital diagnostic function similar to SFF-8472, and is more powerful, which can support more management tools to realize the function of the module. SFP+’s multi-source agreement (MSA) directly uses the SFP interface specification to define the circuit interface, which fully meets the requirements of the SDH optical transmission network OC-192 / STM-64 for the rate of 9953.28 Mbit/s.
OSXD22N00 Specification
| Item | Description |
| Brand | Huawei |

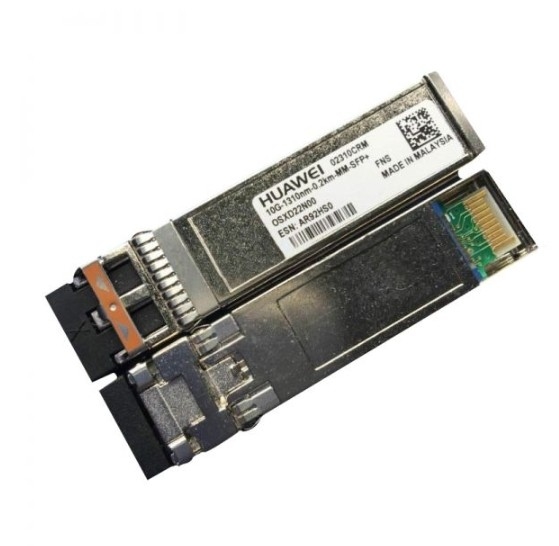

| Model | OSXD22N00 |
| Part number | 02310CRM |
| Transceiver form factor | SFP+ |
| Transmission speed | 10GE |
| Center wavelength (nm) | 1310 |
| Standards compliance | 10GBASE-LRM |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.1 km |
| Multimode fiber (with modal bandwidth of 500 MHz*km and diameter of 62.5 μm): 0.22 km | |
| Multimode fiber (OM1, OM2, OM3): 0.22 km | |
| Transmit power (dBm) | -6.5 to +0.5 |
| Maximum receiver sensitivity (dBm) | -6.5 |
| Overload power (dBm) | 1.5 |
| Extinction ratio (dB) | 3.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
