Product Details:
|
| Brand Name: | Huawei Module | Product Code: | OSX010000 |
|---|---|---|---|
| Transceiver Form Factor: | SFP+ | Transmission Speed: | 10 Gbit/s |
| Center Wavelength (nm): | 1310 | Connector Type: | LC |
| MOQ: | 1PC | Warranty: | 1 Year |
| High Light: | Huawei OSX010000,10G Huawei Optical Transceiver,SFP Single Mode Module |
||
OSX010000

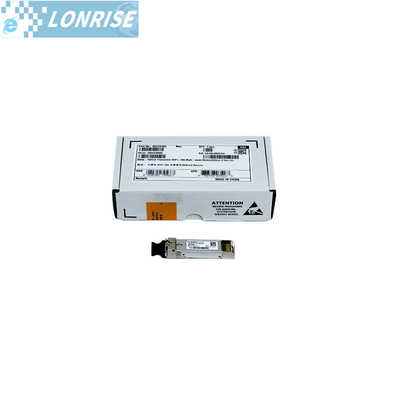

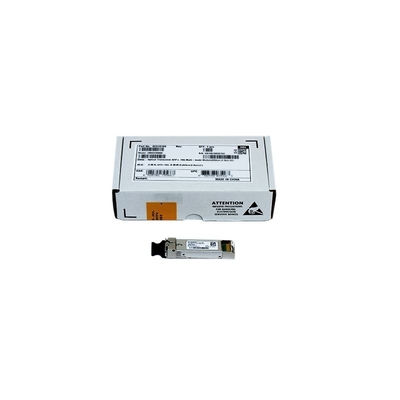

Huawei OSX010000 is a 10G Optical Transceiver. It’s a Single-mode Module.
| Transceiver form factor | SFP+ |
| Transmission speed | 10 Gbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 10Gbase-LR |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
| Transmit power (dBm) | -8.2 to +0.5 |
| Maximum receiver sensitivity (dBm) | -12.6 |
| Overload power (dBm) | 0.5 |
| Extinction ratio (dB) | 3.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
