Huawei eSFP-FE-LX-SM1310 is Optical Transceiver and a Single-mode Module For HUAWEI Switch

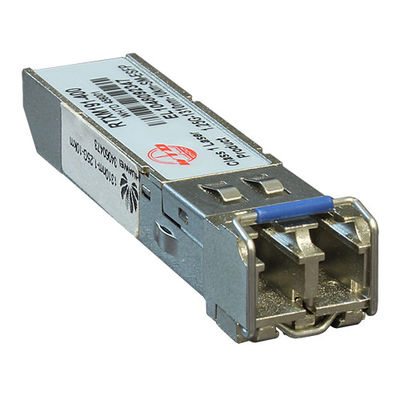

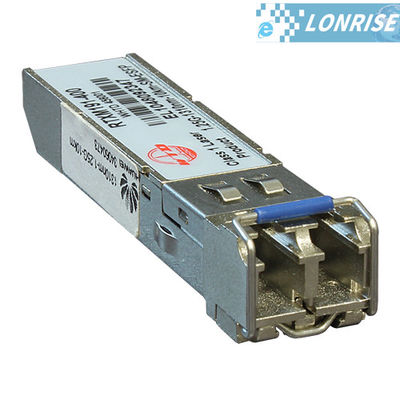

Large Image : Huawei eSFP-FE-LX-SM1310 is Optical Transceiver and a Single-mode Module For HUAWEI Switch

Product Details:

Place of Origin:	CHINA
Brand Name:	HUAWEI
Certification:	CE
Model Number:	eSFP-FE-LX-SM1310

Payment & Shipping Terms:

Minimum Order Quantity:	1pc

Contact Now

Huawei eSFP-FE-LX-SM1310 is Optical Transceiver and a Single-mode Module For HUAWEI Switch

Description

Products Status:	Stock	Product Code:	ESFP-FE-LX-SM1310
Warranty:	1 Year	Lead Time:	1-2 Working Days
Transmission Speed:	100 Mbit/s	Place Of Origin:	China
Transceiver Form Factor:	ESFP	Center Wavelength (nm):	1310
Highlight:	Huawei SFP single-mode transceiver , Huawei switch optical module , eSFP-FE-LX-SM1310 transceiver module

eSFP-FE-LX-SM1310

Product Description

Huawei eSFP-FE-LX-SM1310 is Optical Transceiver. It’s a Single-mode Module.

Specification

Transceiver form factor	eSFP
Transmission speed	100 Mbit/s
Center wavelength (nm)	1310
Standard compliance	100base-LX
Connector type	LC
Applicable cable and maximum transmission distance	Single-mode fiber: 15 km
Transmit power (dBm)	-15.0 to -8.0
Maximum receiver sensitivity (dBm)	-31.0
Overload power (dBm)	-8.0
Extinction ratio (dB)	8.2
Operating temperature	0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm)	110 x 75 x 40
