Product Details:
|
| Products Status: | Stock | Part Number: | N9K-C93180YC-EX |
|---|---|---|---|
| Ports: | 48 X 10/25-Gbps And 6 X 40/100-Gbps QSFP28 Ports | CPU: | 4 Cores |
| System Memory: | 24 GB | System Buffer: | 40 MB |
| Type: | Switch | Weight: | 17.2 Lb (7.8 Kg) |
| Maximum Power: | 470W | ||
| High Light: | Cisco Ethernet Networking Switch,N9K C93180YC EX,Ethernet Networking Switch 470W |
||

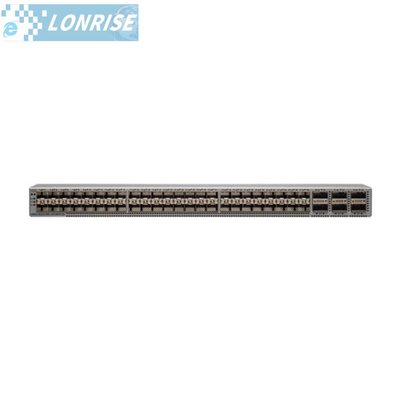

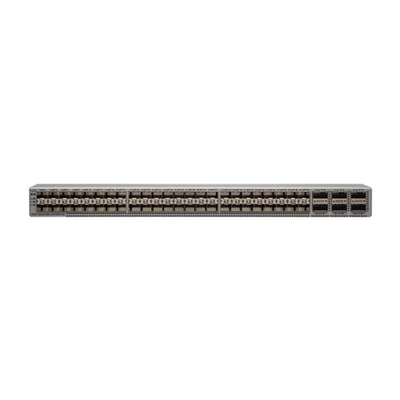

N9K-C93180YC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
N9K-C93180YC-EX Specification |
|
| Ports | 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps speeds |
| CPU | 4 cores |
| System memory | 24 GB |
| SSD drive | 64 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 210W |
| Maximum power (AC/DC) | 470W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (high-voltage AC [HVAC]) |
200 to 277V |
| Input voltage (DC) | –48 to –60V |
| Input voltage (high-voltage DC [HVDC]) |
–240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions (H x W x D) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dBA at 100% fan speed |
| RoHS compliance | Yes |
| MTBF | 390,330 hours |
| Maximum number of Longest Prefix Match (LPM) routes | 896,000 |
| Maximum number of IP host entries | 896,000 |
| Maximum number of MAC address entries | 256,000 |
| Maximum number of multicast routes | 32,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups |
Shipping: 8,000 Maximum: 32,000 |
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
| Maximum number of Access Control List (ACL) entries |
Per slice of the forwarding engine: 4000 ingress 2000 egress Total (2 forwarding slices): 8000 ingress 4000 egress |
| Maximum number of VLANs | 3,967 |
| Number of Virtual Routing and Forwarding (VRF) instances |
Shipping: 1,000 Maximum: 16,000 |
| Maximum number of ECMP paths | 64 |
| Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Network Address Translation (NAT) entries | 1,023 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | –40 to 158°F (–40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| Weight (without power supplies or fans) | 17.2 lb (7.8 kg) |
