Product Details:
|
| Model: | SFP-FE-SX-MM1310 | Name: | SFP-FE-SX-MM1310 |
|---|---|---|---|
| Key Words: | Huawei Sfp Module China | Product Code: | SFP-FE-SX-MM1310 |
| Connector Type: | LC | Transmission Speed: | Fast Ethernet |
| Net Dimension(D X W X H Mm): | 145 X 80 X 35 | MOQ: | 1PC |

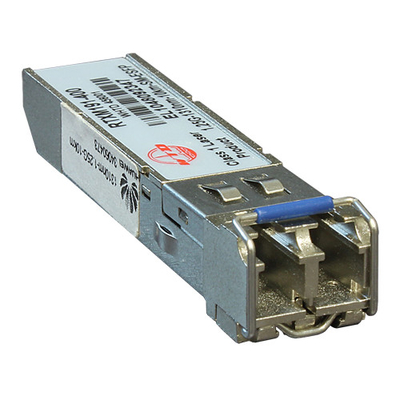

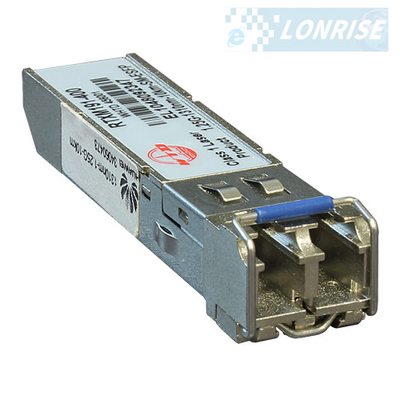

Huawei SFP FE SX MM1310 is Optical Transceiver and it’s a Multi-mode Module for networking.
| Product Code | SFP-FE-SX-MM1310 |
| Transceiver form factor | SFP |
| Transmission speed | Fast Ethernet |
| Center wavelength (nm) | 1310 |
| Standard compliance | 100base-FX |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Multimode fiber (50 μm or 62.5 μm diameter): 2 km |
| Transmit power (dBm) | -19.0 to -14.0 |
| Maximum receiver sensitivity (dBm) | -30.0 |
| Overload power (dBm) | -14.0 |
| Extinction ratio (dB) | 10 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 145 x 80 x 35 |
Figure 1. SFP-FE-SX-MM1310 can be installed in the switch’s SFP slot.
Table 2 shows the Huawei hot switches which support SFP-FE-SX-MM1310.
| Model | Description |
| S2700-26TP-EI-DC | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, DC -48V |
| S2700-52P-EI-AC | 48 x Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V |
| S2700-26TP-EI-AC | 4 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S2700-9TP-PWR-EI | 8 x Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S2700-26TP-PWR-EI | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module |
| S2700-9TP-EI-AC | 8 x Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S3700-28TP-EI-AC | 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S3700-28TP-SI-AC | 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S3700-28TP-PWR-SI | 24 x Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,with 500W AC power supply |
Table 3 shows the comparison of SFP-FE-SX-MM1310 and eSFP-FE-LX-SM1310.
| Item | SFP-FE-SX-MM1310 | eSFP-FE-LX-SM1310 |
| Transceiver form factor | SFP | eSFP |
| Transmission speed | Fast Ethernet | 100 Mbit/s |
| Center wavelength (nm) | 1310 | 1310 |
| Standard compliance | 100base-FX | 100base-LX |
| Connector type | LC | LC |
|
Applicable cable and maximum transmission distance |
Multimode fiber (50 μm or 62.5 μm diameter): 2 km | Single-mode fiber: 15 km |
| Transmit power (dBm) | -19.0 to -14.0 | -15.0 to -8.0 |
| Maximum receiver sensitivity (dBm) | -30.0 | -31.0 |
| Overload power (dBm) | -14.0 | -8.0 |
| Extinction ratio (dB) | 10 | 8.2 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 145 x 80 x 35 | 110 x 75 x 40 |
