Product Details:
|
| Part Number:: | N3K-C3524P-XL | Ports: | 24 |
|---|---|---|---|
| Flash Memory: | 16GB | RAM: | 16GB |
| Switching Type: | 10 Gigabit Ethernet | Maximum Power: | 193W |

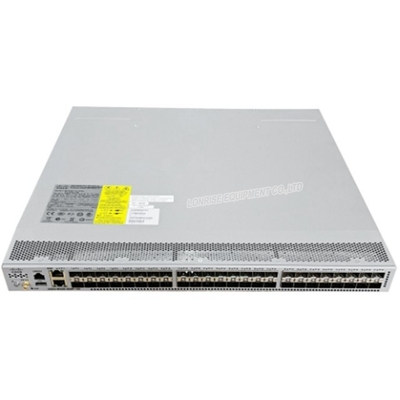

The Cisco Nexus 3524-XL Switches are, respectively, Cisco Nexus 3524-X Switches with a faster CPU, running at 2.5 GHz; system memory increased to 16 GB; and bootflash memory increased to 16 GB. These enhancements allow the switches to support the Cisco NX-OS Data Management Engine (DME) model.
The Cisco Nexus 3524-XL have the following hardware configuration:
· 24 fixed SFP+ ports (1 or 10 Gbps)
· Dual redundant hot-swappable power supplies
· Four individual redundant hot-swappable fans
· One 1-PPS timing port, with the RF1.0 and 2.3 QuickConnect connector type
· One 10/100/1000 management port
· One RS-232 serial console port
· Two USB ports
· Locator LED
· Locator LED button
Support for both port-side exhaust and port-side intake airflow schemes is available. Port-side exhaust airflow is useful when the port side of the switch sits on a hot aisle and the power supply side sits on a cold aisle. Port-side intake airflow is useful when the power supply side of the switch sits on a cold aisle.
N3K-C3524P-XL Specification |
||
| Physical |
· 24 fixed SFP+ ports (1 or 10 Gbps); expandable to 48 ports · Dual redundant hot-swappable power supplies · Four individual redundant hot-swappable fans · One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type · One 10/100/1000-Mbps management port · One RS-232 serial console port · Two USB ports · Locator LED · Locator LED button |
|
| Performance |
· 480-Gbps switching capacity · Forwarding rate of 360 mpps · Line-rate traffic throughput (both Layer 2 and 3) on all ports · Configurable MTUs of up to 9216 bytes (jumbo frames) |
|
| Typical operating power | · 102W | |
| Maximum power | · 193W | |
| Typical heat dissipation | · 348 BTUs per hr | |
| Maximum heat dissipation | · 658 BTUs per hr | |
| Hardware specifications common to all switches | ||
| Mode | Normal mode | Warp mode |
| Number of MAC addresses | 64,000 | 8000 |
| Number of IPv4 unicast routes | 24,000 | 4000 |
| Number of IPv4 hosts | 64,000 | 8000 |
| Number of IPv4 multicast routes | 8000 | 8000 |
| Number of VLANS | 4096 | |
| Number of ACL entries | 4096 | |
| Number of spanning-tree instances |
Rapid Spanning Tree Protocol (RSTP): 512 Multiple Spanning Tree (MST) Protocol: 64 |
|
| Number of EtherChannels | 24 | |
| Number of ports per EtherChannel | 24 | |
| Buffer size | 6 MB shared among 16 ports; 18 MB total | |
| System memory | 16 GB | |
| Boot flash memory | 16 GB | |
| Number of power supplies | 2 (redundant) | |
| Power supply types |
· AC (forward and reversed airflow) · DC (forward and reversed airflow) |
|
| Input voltage | 100 to 240 VAC | |
| Frequency | 50 to 60 Hz | |
| Power supply efficiency | 89 to 91% at 220V | |
|
Forward and reversed airflow schemes · Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports) · Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Four individual, hot-swappable fans (3+1 redundant) |
||
| Dimensions (height x width x depth) | 1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm) | |
| Weight | 17.4 lb (7.9 kg) | |
| Operating temperature | 32 to 104° F (0 to 40°C) | |
| Storage temperature | -40 to 158° F (-40 to 70°C) | |
| Relative humidity (operating) |
· 10 to85% noncondensing · Up to 5 days at maximum (85%) humidity · Recommend ASHRAE data center environment |
|
| Relative humidity (nonoperating) | 5 to 95% noncondensing | |
| Altitude | 0 to 10,000 ft (0 to 3000m) | |
