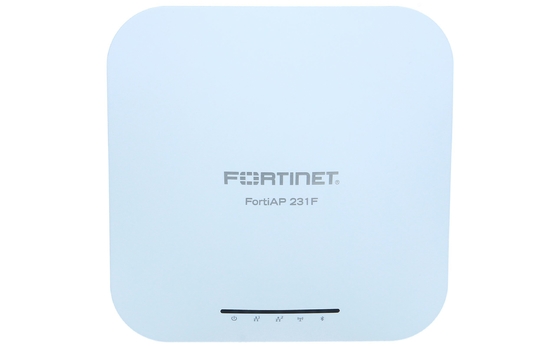

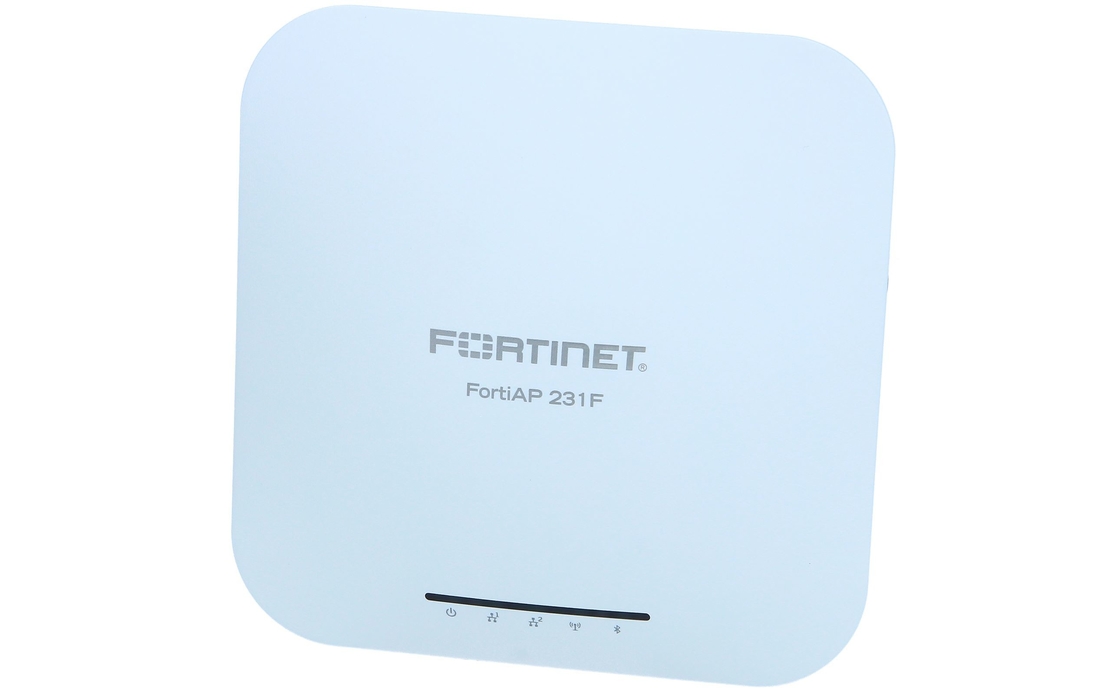

Fortinet FAP-231F-C Indoor Wireless AP Access Point

Fortinet FAP-231F-C Indoor Wireless AP Access Point
Fortinet FAP-231F-C Indoor Wireless AP Access Point Fortinet FAP-231F-C Indoor Wireless AP Access Point

Large Image :  Fortinet FAP-231F-C Indoor Wireless AP Access Point

Product Details:
Place of Origin: China
Brand Name: Fortinet
Certification: CE
Model Number: FAP-231F-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Original package
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 PCS / Month

Fortinet FAP-231F-C Indoor Wireless AP Access Point

Description
High Light:

FAP-231F-C Wifi Access Point

,

PIFA Antenna Ap Access Point

Indoor Wireless AP - Tri radio (802.11 b/g/n/ax 2x2 MU-MIMO, 802.11 a/n/ac/ax 2x2 MU-MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 ), internal antennas, 2x 10/100/1000 RJ45 port, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP250-PA-10. Region Code C







Hardware Type Indoor AP
Number of Radios 3 + 1 BLE
Number of Antennas 3 Dual band Internal Wi-Fi + 1 BLE/ZigBee
Antenna Type and Peak Gain PIFA antenna
Dual band: 4.5dBi for 2.4Ghz and 5.5dBi for 5GHz
BLE antenna 4.0dBi at 2.4GHz band
Frequency Bands (GHz) 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities Frequency band: 2.4GHz
Channel width: 20/40MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2x2 Service
Radio 2 Capabilities Frequency band: 5.0GHz
Channel width: 20/40/80MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2x2 Service
Radio 3 Capabilities Frequency bands: 2.4GHz and 5.0GHz
MIMO Chains: 1x1 Frequency Scanning
Maximum Data Rate Radio 1: up to 574 Mbps
Radio 2: up to 1201 Mbps
Radio 3: Frequency scanning only
Bluetooth Low Energy Radio Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power
Interfaces 2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE) 1 x 802.3at PoE default
1 x 802.af PoE no USB function
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist
Maximum Tx Power (Conducted) Radio 1: 2.4GHz: 23 dBm / 200 mW (2 chains combined)
Radio 2: 5GHz: 22 dBm / 158 mW (2 chains combined)
Radio 3: NA
Kensington Lock Yes
IEEE Standards 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az
SSID Types Supported Local-Bridge, Tunnel, and Mesh
Per Radio Client Capacity Up to 512 clients per radio (Radio1 and Radio2)
Cellular Co-existence Yes
Reset Button Yes
LED Off Mode Yes
Advanced 802.11 Features
OFDMA Yes
Spatial Reuse (BSS Coloring) Yes
UL MU-MIMO 802.11ax mode Yes
DL-MU-MIMO Yes
Enhanced Target Wake Time (TWT) Yes
ZeroWait DFS/Agile DFS No
Wireless Monitoring Capabilities
Rogue Scan radio modes Background, Dedicated
WIPS / WIDS radio modes Background, Dedicated (recommended)
Packet Sniffer Mode Yes
Spectrum Analyzer Yes
Dimensions
Length x Width x Height 6.0 x 6.0 x 2.86 inches (153.2 x 153.2 x 53.0 mm)
Weight 1.0 lbs (0.543 kg)
Package (shipping) Weight 2.1lbs (0.95 kg)
Mounting Options Ceiling, T-Rail, and Wall
Included Accessories Standard Mount kit for Ceiling, T-Rail, and Wall
Environment
Power Supply 802.3at PoE SP-FAP200-PA-XX or GPI-130
Power Consumption (Maximum) 17W
Humidity 5 - 90% non condensing
Operating / Storage Temperature 32–122°F (0 - 50°C) / -22–158°F (-30–70°C)
Directives Low Voltage Directive • RoHS
UL2043 Plenum Material No
Mean Time Between Failures > 10 Years
IP Rating N/A
Surge Protection Built In Yes
Hit-less PoE Failover N/A
Certifications
WiFi Alliance Certified No
DFS CE
Warranty
Limited Lifetime Warranty Yes
