Product Details:
|
| SKU: | EX2300-48P | Backplane Speed: | 80 Gbps |
|---|---|---|---|
| Data Rate: | 176 Gbps | Throughput: | 130 Mpps (wire Speed) |
| Dimensions (W X H X D): | 17.4 X 1.75 X 12.2 In (44.19 X 4.45 X 30.98 Cm) 1 Rack Unit | Operating System: | Junos OS |
| High Light: | EX2300-48P Cisco Industrial Switch,Integrated Cisco Ethernet Switch,SFP Networking Cisco Ethernet Switch |
||

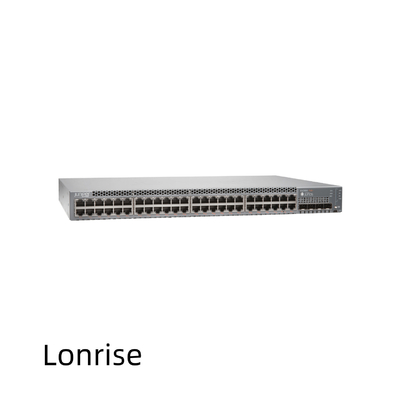

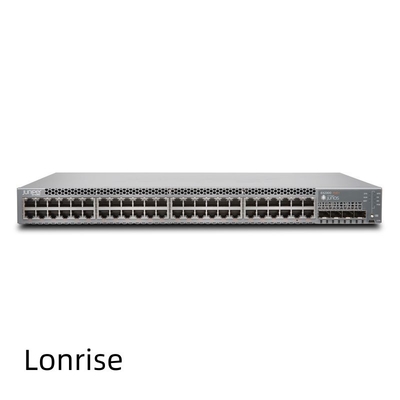

EX2300-48P is a Juniper EX2300 switch with 48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately). EX2300 Ethernet Switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small, 1 U footprint, the EX2300 is perfect for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
| SKU | EX2300-48P |
| Backplane speed | 80 Gbps |
| Data rate | 176 Gbps |
| Throughput | 130 Mpps (wire speed) |
| Ports | 48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
| Dimensions (W x H x D) | 17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm) 1 rack unit |
| Form factor | Fixed platform Virtual Chassis configuration consisting of up to four switches Junos Fusion Enterprise Satellite device |
| Ports | 48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
| Dimensions (W x H x D) | 17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm) 1 rack unit |
| Backplane speed | 80 Gbps |
| Data rate | 176 Gbps |
| Throughput | 130 Mpps (wire speed) |
| 10/100/1000BASE-T port densities | N/A |
| 10GBASE-X port densities | N/A |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | N/A |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Integrated power supply and fans |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 |
| MAC addresses | 16,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast / multicast routes | 4096 / 2048 |
| IPv6 unicast / multicast routes | 2048 / 1024 |
| Number of VLANs | 4093 |
| ARP entries | 1500 |
