Product Details:
|
| SKU: | EX3400-48P | Backplane Speed: | 160 Gbps |
|---|---|---|---|
| Data Rate: | 336 Gbps | Throughput: | 250 Mpps (wire Speed) |
| Dimensions (W X H X D): | 17.4 X 1.7 X 13.8 In (43.7 X 4.4 X 35 Cm) 1 Rack Unit | Operating System: | Junos OS |
| High Light: | EX3400-48P Cisco Ethernet Switch,48 Port PoE Cisco Ethernet Switch,1000BaseT PoE Ethernet Switch |
||

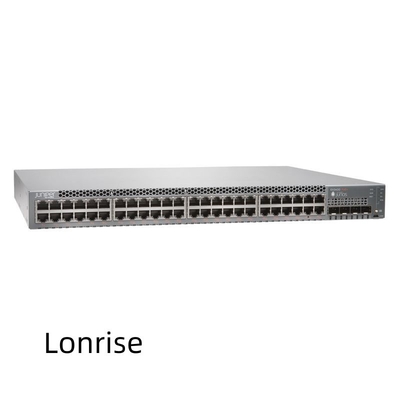

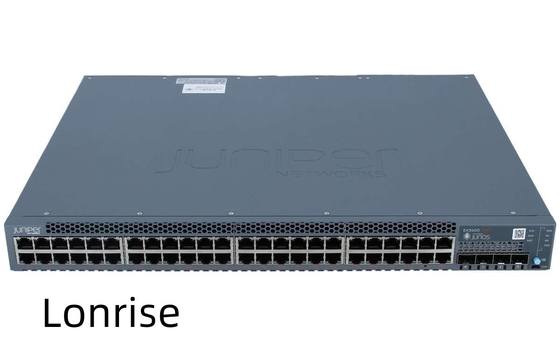

EX3400-48P is a Juniper EX3400 switch with 48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
| SKU | EX3400-48P |
| Ports | 48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Backplane speed | 160 Gbps |
| Data rate | 336 Gbps |
| Throughput | 250 Mpps (wire speed) |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
|
Description |
EX3400 48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
|
Form factor |
Fixed platform |
|
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
|
Backplane speed |
160 Gbps |
|
Data rate |
336 Gbps |
|
Throughput |
250 Mpps (wire speed) |
|
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities |
2 |
|
100GBASE C form-factor pluggable transceiver (CFP) port densities |
N/A |
|
Resiliency |
Redundant, field-replaceable power supplies |
|
Operating system |
Junos OS |
|
Traffic monitoring |
sFlow |
|
Quality-of-service (QoS) queues/port |
8 unicast/4 multicast |
|
MAC addresses |
32,000 |
|
Jumbo frames |
9216 bytes |
|
IPv4 unicast/multicast routes |
36,000/4,000 |
|
IPv6 unicast/multicast routes |
18,000/2,000 |
|
Number of VLANs |
4,096 |
|
ARP entries |
16,000 |
