Product Details:
|
| SKU: | EX3400-24T | Backplane Speed: | 160 Gbps |
|---|---|---|---|
| Data Rate: | 288 Gbps | Throughput: | 214 Mpps (wire Speed) |
| Dimensions (W X H X D): | 17.4 X 1.7 X 13.8 In (43.7 X 4.4 X 35 Cm) 1 Rack Unit | Number Of VLANs: | 4,096 |
| High Light: | 1000BaseT Cisco Ethernet Switch,EX3400-24T Cisco Ethernet Switch,Redundant PoE Ethernet Switch |
||

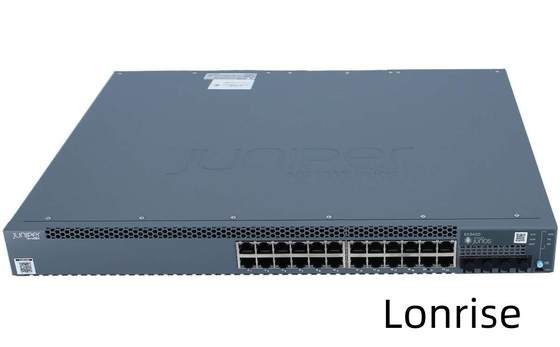

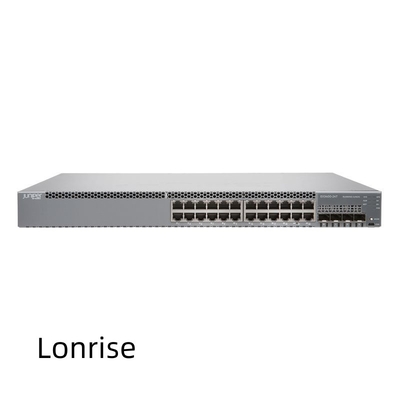

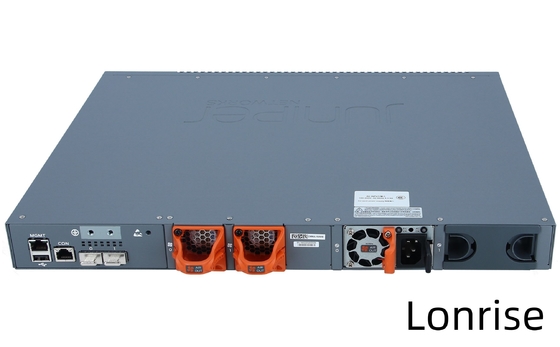

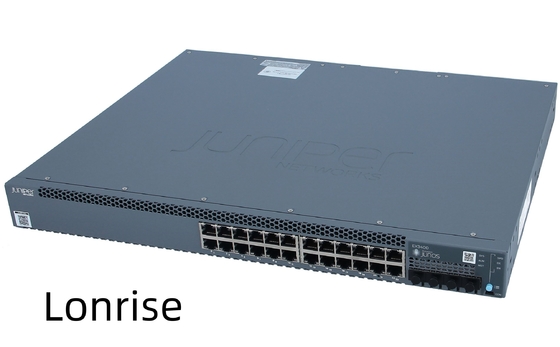

EX3400-24T is a Juniper EX3400 switch with 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
|
SKU |
EX3400-24T |
|
Ports |
24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
|
Backplane speed |
160 Gbps |
|
Data rate |
288 Gbps |
|
Throughput |
214 Mpps (wire speed) |
|
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
| Description | EX3400 24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Form factor | Fixed platform Virtual Chassis configuration consisting of up to 10 switches Junos Fusion Enterprise Satellite device |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
| Backplane speed | 160 Gbps |
| Data rate | 288 Gbps |
| Throughput | 214 Mpps (wire speed) |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | 2 |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 unicast/4 multicast |
| MAC addresses | 32,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 36,000/4,000 |
| IPv6 unicast/multicast routes | 18,000/2,000 |
| Number of VLANs | 4,096 |
| ARP entries | 16,000 |
