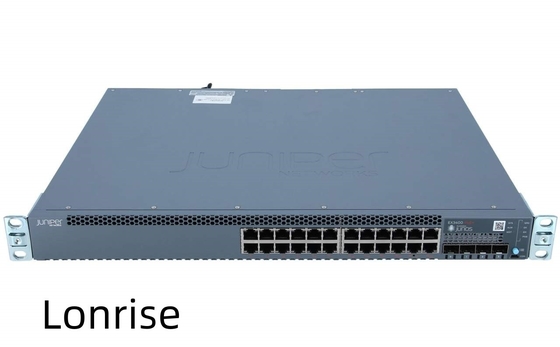

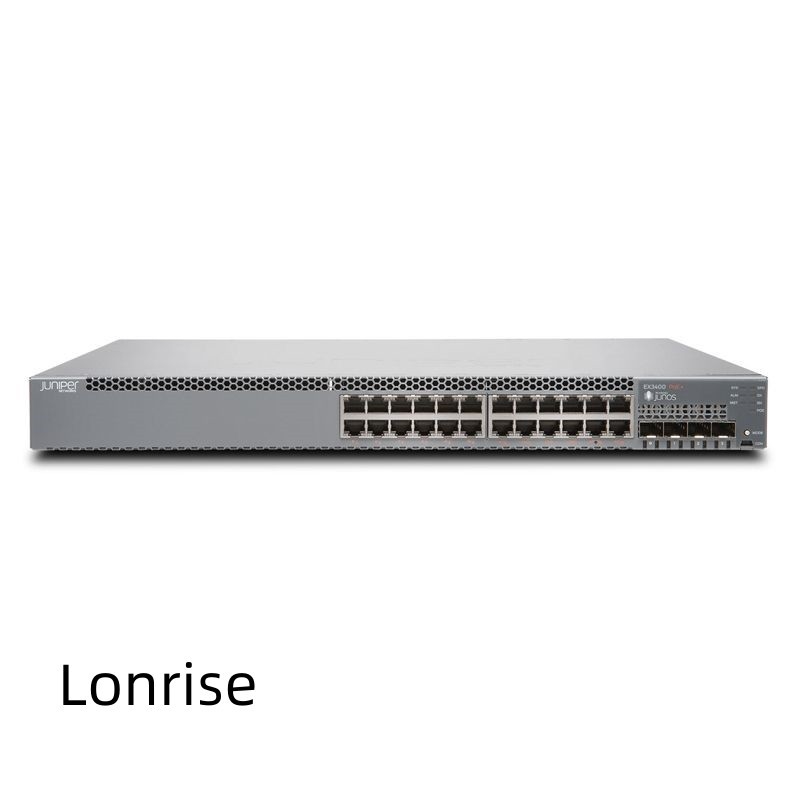

New And Original EX3400-24P Juniper EX3400 24 Port Ethernet Switch

EX3400-24P is a Juniper EX3400 switch with 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.

Description

EX3400 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included)

Form factor

Fixed platform
Virtual Chassis configuration consisting of up to 10 switches
Junos Fusion Enterprise Satellite device

Dimensions (W x H x D)

17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm)
1 rack unit

Backplane speed

160 Gbps

Data rate

288 Gbps

Throughput

214 Mpps (wire speed)

40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities

2

100GBASE C form-factor pluggable transceiver (CFP) port densities

N/A

Resiliency

Redundant, field-replaceable power supplies
Redundant trunk groups that provide port redundancy and simplify switch configuration

Operating system

Junos OS

Traffic monitoring

sFlow

Quality-of-service (QoS) queues/port

8 unicast/4 multicast

MAC addresses

32,000

Jumbo frames

9216 bytes

IPv4 unicast/multicast routes

36,000/4,000

IPv6 unicast/multicast routes

18,000/2,000

Number of VLANs

4,096

ARP entries

16,000
