Product Details:
|
| SKU: | N9K-C93108TC-FX | CPU: | 4 Cores |
|---|---|---|---|
| System Memory: | 24 GB | SSD Drive: | 128 GB |
| System Buffer: | 40 MB | Management Ports: | 2 Ports: 1 RJ-45 And 1 SFP+ |
| High Light: | Nexus 9300 Cisco Ethernet Switch,6x 100G Cisco Ethernet Switch |
||

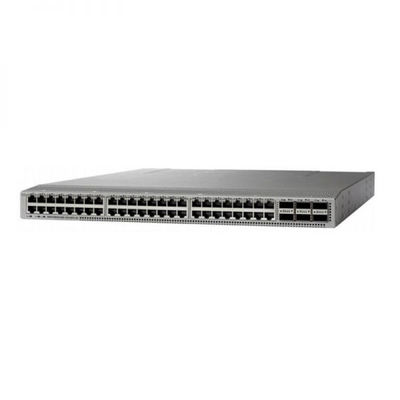

The Cisco N9K-C93108TC-FX Switch is a 1RU switch that supports 2.16 Tbps of bandwidth and over 1.25bpps. The 48 10GBASE-T downlink ports on the 93108TC-FX can be configured to work as 100-Mbps, 1-Gbps, or 10-Gbps ports. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 1-, 10-, 25-, 40, 50-, and 100-Gbps connectivity, offering flexible migration options.
N9K-C93108TC-FX Specification |
|
| Hardware performance and scalability | |
| Ports | 48 x 100M/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 100-Mbps and 1/10-Gbps speeds |
| CPU | 4 cores |
| System memory | 24 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP+ |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 500W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 276W |
| Maximum power (AC/DC) | 460W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) |
200 to 277V |
| Input voltage (DC) | –48 to –60V |
| Input voltage (High-Voltage DC [HVDC]) |
–240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions (H x W x D) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 64.2 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.8 dBA at 100% fan speed |
| RoHS compliance | Yes |
| MTBF | 319,790 hours |
| Environmental properties | |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | –40 to 158°F (–40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
