Product Details:
|
| Model: | C9300-48S-A | Key Words: | Layer 3 Switch |
|---|---|---|---|
| Default AC Power Supply: | 715W AC | Dimensions (H X W X D): | 1.73 X 17.5 X 17.7Inches |
| Uplink Configuration: | Modular Uplinks | Forwarding Rate: | 190.47 Mpps |
| High Light: | Cisco Catalyst Uplink Switch,48 GE Ports Modular Uplink Switch,SFP Catalyst 9300 Switch |
||

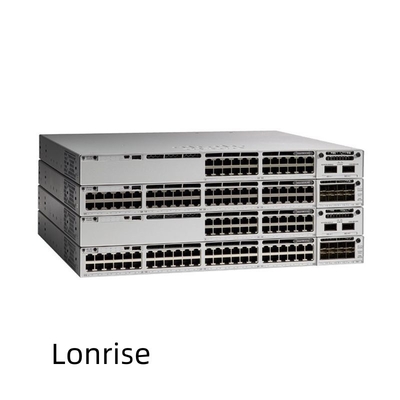

The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture.
|
Product Code |
C9300-48S-A |
|
Product Description |

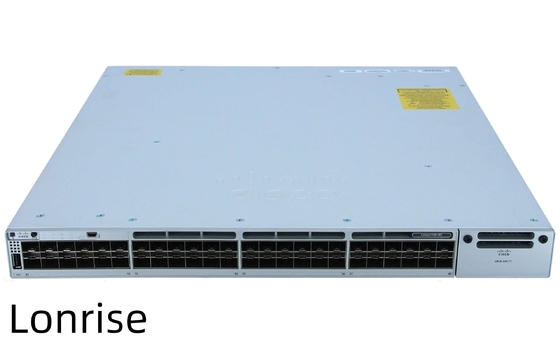

Catalyst 9300 48 GE SFP Ports, modular uplink Switch |
|
Total 10/100/1000 or Multigigabit copper ports |
48x 1G SFP |
|
Uplink Configuration |
Modular Uplinks |
|
Default AC power supply |
715W AC |
|
Available PoE power |
N/A |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 17.7Inches |
|
Product Code |
C9300-48S-A |
|
Product Description |
Catalyst 9300 48 GE SFP Ports, modular uplink Switch |
|
Total 10/100/1000 or Multigigabit copper ports |
48x 1G SFP |
|
Uplink Configuration |
Modular Uplinks |
|
Default AC power supply |
715W AC |
|
Available PoE power |
N/A |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 17.7 Inches |
|
Cisco StackWise-480 |
Yes |
|
Cisco StackPower |
Yes |
|
Default power supply |
PWR-C1-715WAC-P/2 |
|
Switching capacity |
256 Gbps |
|
Stacking bandwidth |
736 Gbps |
|
Forwarding rate |
190.47 Mpps |
|
Total number of MAC addresses |
32,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
32,000 (24,000 direct routes and 8000 indirect routes)
|
|
IPv4 routing entries |
32,000 |
|
IPv6 routing entries |
16,000 |
|
Multicast routing scale |
8000 |
|
QoS scale entries |
5120 |
|
ACL scale entries |
5120 |
|
Packet buffer per SKU |
16 MB buffer for 24- or 48-port Gigabit Ethernet modelst 32 MB buffer for 24 and 48-port Multigigabit |
|
FNF entries |
64,000 flow on 24- and 48-port Gigabit Ethernet models 128,000 flows on 24-port Multigigabit |
|
DRAM |
8 GB |
|
Flash |
16 GB |
|
VLAN IDs |
4094 |
|
Total Switched Virtual Interfaces (SVIs) |
1000 |
|
Jumbo frames |
9198 bytes |
|
Total routed ports Catalyst per 9300 Series stack |
448 |
|
Wireless bandwidth per switch |
Up to 96 Gbps on 48-port Gigabit Ethernet model |
|
Mean time between failures – MTBF (hours) |
281,920 |
|
Safety certifications
|
•UL 60950-1 •CAN/CSA-C222.2 No. 60950-1 •EN 60950-1 •IEC 60950-1 •AS/NZS 60950.1 •IEEE 802.3 |
|
Electromagnetic emissions certifications |
•47 CFR Part 15 •CISPR22 Class A •EN 300 386 V1.6.1 •EN 55022 Class A •EN 55032 Class A •CISPR 32 Class A •EN61000-3-2 •EN61000-3-3 •ICES-003 Class A •TCVN 7189 Class A •V-3 Class A •CISPR24 •EN 300 386 •EN55024 •TCVN 7317 • V-2/2015.04 •V-3/2015.04 •CNS13438 •KN32 •KN35 •IEC 61000-6-1 •EN 61000-6-1 |
|
Environmental |
Reduction of Hazardous Substances (ROHS) 5 |
