Product Details:
|
| Product Code: | N9K-C9332C | Physical (H X W X D): | 1.7 X 17.3 X 22.9 In. (4.4 X 43.9 X 58.1 Cm) |
|---|---|---|---|
| Power: | 1100W AC, 1100 DC Or 1100W HVAC/HVDC | Frequency: | 50 To 60 Hz (AC) |
| Hot Swappable: | Yes | Maximum Power: | 700W (AC) |
| High Light: | Nexus 9K ACI Cisco Ethernet Switch,Spine Cisco Ethernet Switch,10G Nexus 9K Switch |
||
N9K-C9332C Nexus 9K ACI & NX-OS Spine 32p 40/100G & 2p 10G 9000 Series Switch:

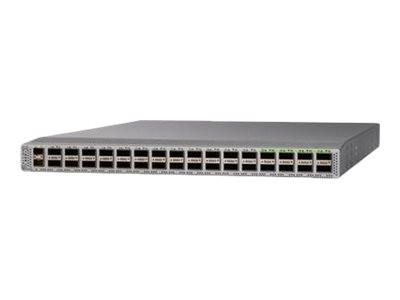

N9K-C9332C is the Nexus 9332C ACI Spine switch with 32p 40/100G QSFP28, 2p 1/10G SFP. The Cisco Nexus 9332C is the smallest form-factor 1-Rack-Unit (1RU) spine switch for Cisco ACI that supports 6.4 Tbps of bandwidth and 2.3 bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports. Breakout is not supported on ports 1 to 32. The last 8 ports marked in green support wire-rate MACsec encryption.
| Product Code | N9K-C9332C |
| Physical |
● 32-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports ● 1100 watt (W) AC, DC or HVAC/HVDC power supplies (up to 2) ● Hot-swappable, 5 fans with redundancy ● System memory: 16 GB ● SSD: 256GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) ● Broadwell-DE CPU: 4 cores |
| Physical (H x W x D) | 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm) |
| Weight (chassis) | 25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans |
Table 2 shows the supported accessories.
| Model | Description |
| N9K-C9300-FAN3 | Nexus 9300 Fan 3, Port-side Intake |
| N9K-C9300-FAN3-B | Nexus 9300 Fan 3, Port-side Exhaust |
| NXA-FAN-160CFM-PI | Nexus Fan, 160CFM, port side intake airflow |
| NXA-FAN-160CFM-PE | Nexus Fan, 160CFM, port side exhaust airflow |
| NXA-FAN-35CFM-PI | Nexus Fan, 35CFM, port side intake airflow |
| NXA-FAN-35CFM-PE | Nexus Fan, 35CFM, port side exhaust airflow |
| N9K-PAC-1200W | Nexus 9300 1200W AC PS, Port-side Intake |
| N9K-PAC-1200W-B | Nexus 9300 1200W AC PS, Port-side Exhaust |
| NXA-PAC-1100W-PE2 | Nexus 1100W AC PS, Port-side Exhaust |
| NXA-PAC-1100W-PI2 | Nexus 1100W AC PS, Port-side Intake |
| NXA-PAC-1200W-PE | Nexus 1200W AC PS, Port-side Exhaust |
| NXA-PAC-1200W-PI | Nexus 1200W AC PS, Port-side Intake |
| N9K-PUV-1200W | Nexus 1200W, 200-277AC,240-380DC, Dual airflow PSU |
| UCS-PSU-6332-DC | 930W -48V DC PS, Port-side Exhaust |
| UCSC-PSU-930WDC | 930W -48V DC PS, Port-side Intake |
| NXA-PDC-930W-PE | Nexus 930W -48V DC PS, Port-side Exhaust |
| NXA-PDC-930W-PI | Nexus 930W -48V DC PS, Port-side Intake |
