Product Details:
|
| Models: | N9K-C9364C | Transfer Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Communication Mode: | Full Duplex And Half Duplex | Device Type: | Switch - 64 Ports - Managed |
| Connectors: | 64 | Brand: | CISCO |
| Condition: | Original New | Lead Time: | 1-2 Days |
| High Light: | Nexus 9364C Cisco Ethernet Switch,Cisco Ethernet Poe Switch,N9K-C9364C 48 Port Poe Switch |
||
N9K-C9364C Nexus 9364C Cisco Ethernet Switch 48 port poe switch

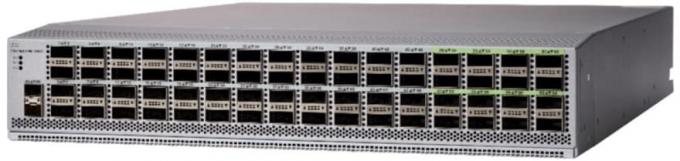

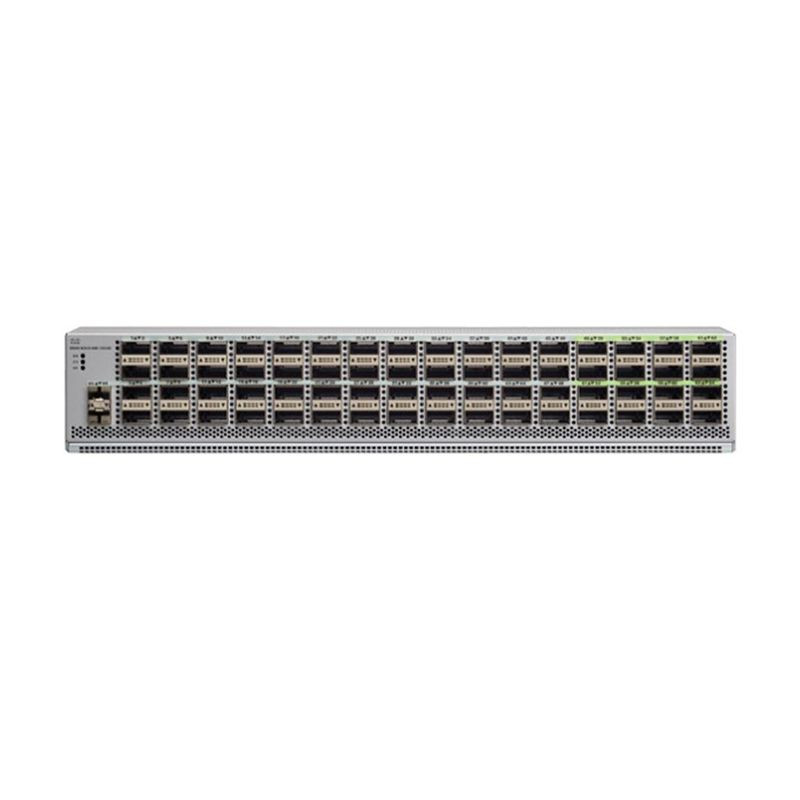

The Cisco Nexus 9364C Spine Switch is a 2-Rack-Unit (2RU) spine switch that supports 12.84 Tbps of bandwidth and 4.3 bpps across 64 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports (Figure 1). Breakout cables are not supported. The last 16 ports marked in green are capable of wire-rate MACsec encryption.[1] The switch can operate in Cisco ACI Spine or NX-OS mode.
Cisco Nexus 9364C Switch

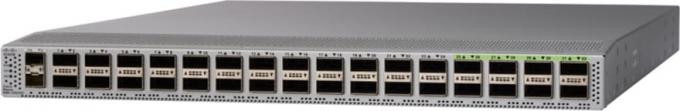

The Cisco Nexus 9332C is a compact form-factor 1-Rack-Unit (1RU) spine switch that supports 6.4 Tbps of bandwidth and 4.4bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports (Figure 2). Breakout cables are not supported. The last 8 ports marked in green are capable of wire-rate MACsec encryption.[2] The switch can operate in Cisco ACI Spine or NX-OS mode.
| Product Code | N9K-C9364C |
| Physical |
● 64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports ● 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2) ● Hot-swappable, dual fan trays with redundant fans ● System memory: 32GB ● SSD: 256GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: ● Broadwell-DE CPU: 4 cores |
| Physical (H x W x D) | 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm) |
| Weight (chassis) | 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans |
| Product Code | N9K-C9364C | |
| Physical |
● 64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports ● 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2) ● Hot-swappable, dual fan trays with redundant fans ● System memory: 32GB ● SSD: 256GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: ● Broadwell-DE CPU: 4 cores |
● 32-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports ● 1100 watt (W) AC, DC or HVAC/HVDC power supplies (up to 2) ● Hot-swappable, 5 fans with redundancy ● System memory: 16 GB ● SSD: 256GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) ● Broadwell-DE CPU: 4 cores |
| Physical (H x W x D) | 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm) | 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm) |
| Weight (chassis) | 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans | 25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans |
