Product Details:
|
| Model: | C9500-48Y4C-A | Availability: | IN STOCK |
|---|---|---|---|
| Lead Time: | 1-3 Days | Condition: | Original New |
| Switching Capacity: | Up To 3.2 Tbps | Forwarding Rate: | Up To 1 Bpps |
| Total Number Of MAC Addresses: | Up To 82,000 | QoS ACL Scale: | Up To 16000 |
| High Light: | Catalyst 9500 Cisco Ethernet Switch,C9500-48Y4C-A Cisco Catalyst Switch |
||

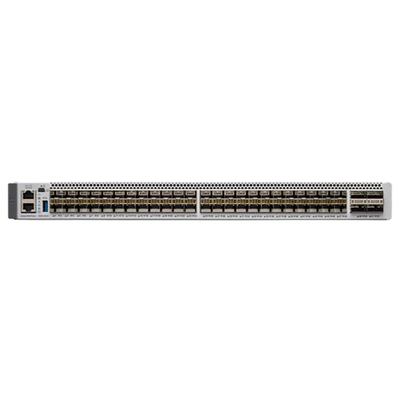

C9500 48Y4C A C ISCO CATALYST SWITCH Cisco Ethernet Switch Advantage Switch C9500-48Y4C-A
The Catalyst 9500 Series, including the new Catalyst 9500X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small. Cisco Catalyst 9500X switch based on Cisco Silicon One Q200 ASIC is purpose built for the next generation core with a programmable pipeline (P4) and is the first network silicon to offer switching capacity upto 12.8 Tbps full duplex in the enterprise.
Cisco Catalyst 9500 Series switches based on Cisco Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) are Cisco’s lead fixed enterprise core and aggregation switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
C9500-48Y4C-A Cisco Ethernet Switch Specification |
|
| Performance specifications | |
| Switching capacity | Up to 3.2 Tbps |
| Forwarding rate | Up to 1 Bpps |
| Total number of MAC addresses | Up to 82,000 |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) |
Up to 212,000 indirect + direct Up to 90,000 host/ARP |
| Total number of IPv6 routes |
Up to 212,000 indirect + direct Up to 90,000 host |
| QoS ACL scale | Up to 16000 |
| Security ACL scale | Up to 27000 |
| FNF entries | Up to 98,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| Jumbo frame | 9216 bytes |
| Power supply specifications | |
| Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
| Dimensions, physical specifications, and MTBF Cisco Ethernet Switch | |
| Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
| Rack units (RU) | 1 RU |
| Input voltage | 90 to 264 VAC |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -4° to 149°F (-20° to 65°C) |
| Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Altitude | Operation up to 13,000 feet at 40°C |
| MTBF (hours) | 316,960 |
SWitch models and configurations
All switches ship with the 650W,950W,1500W or 1600W AC power supply as default

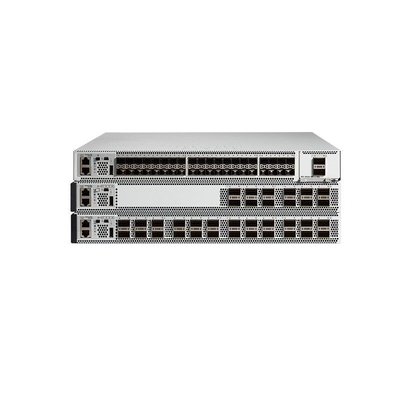

Figures 1 through 9 show the Cisco Catalyst 9500 Series Switches
C9500X-28C8D: Cisco Catalyst 9500X switch with 28x 40/100G QSFP28 ports + 8x 40/100/200/400G Gigabit Ethernet
C9500X-60L4D: Cisco Catalyst 9500X switch with 60x 10/25/50G Gigabit Ethernet + 4x 40/100/200/400G Gigabit Ethernet
C9500-32C: Cisco Catalyst 9500 Series high-performance switch with 32x 100 Gigabit Ethernet
C9500-32QC: Cisco Catalyst 9500 Series high-performance switch with 32x 40 or 16x100 Gigabit Ethernet
C9500-48Y4C: Cisco Catalyst 9500 Series high-performance switch with 48x 1/10/25G Gigabit Ethernet + 4x 40/100G Uplink
C9500-24Y4C: Cisco Catalyst 9500 Series high-performance switch with 24x 1/10/25G Gigabit Ethernet + 4x 40/100G Uplink
C9500-24Q: Cisco Catalyst 9500 Series switch with 24x 40G Gigabit Ethernet
C9500-12Q: Cisco Catalyst 9500 Series switch with 12x 40G Gigabit Ethernet
C9500-40X: Cisco Catalyst 9500 Series switch with 40x 1/10G Gigabit Ethernet
