Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | Application: | Indoor |
| MOQ: | 1 PCS | Brand: | Cisco |
| Product Status: | Stock | ||
| High Light: | 24 Ports Gigabit Poe Switch,Managed Gigabit Poe Switch,UPOE Network Cisco Ethernet Switch |
||

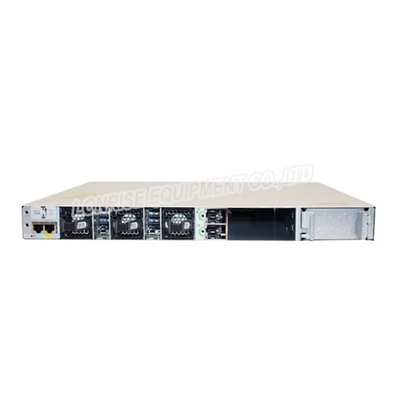

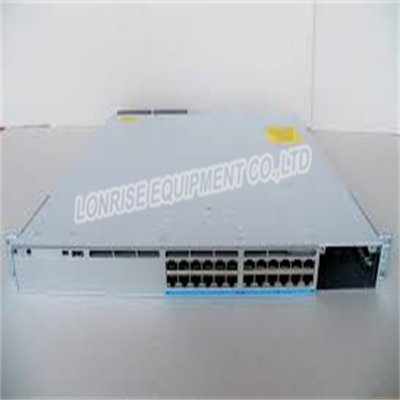

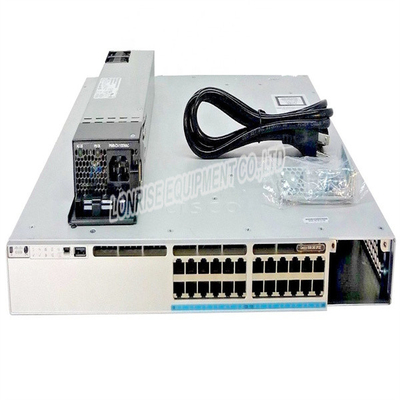

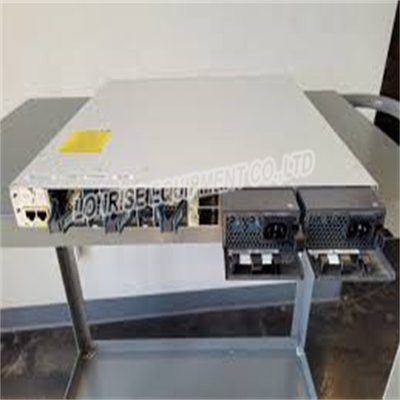

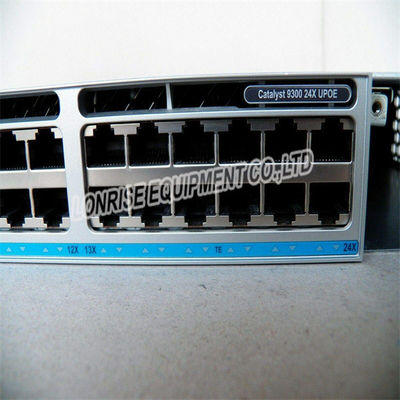

C9300-24UX-A are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24UX-A is 24-port Multigigabit Ethernet and UPOE, Network Advantage Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
C9300-24UX-A Specification |
|
| Part Number | C9300-24UX-A |
| Product Description | Catalyst 9300 24-port Multigigabit Ethernet and UPOE, Network Advantage |
| Total 10/100/1000 or Multigigabit copper ports | 24 Multigigabit Cisco UPOE (100 Mbps or 1, 2.5, 5, or 10 Gbps) |
| Default AC power supply | 1100W AC |
| Available PoE power | 490W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-1100WAC-P/2 |
| Switching capacity | 640 Gbps on 24-port Multigigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 32 MB buffer for 24-port Multigigabit |
| FNF entries | 128,000 flows on 24-port Multigigabit |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Mean time between failures (hours) | 299,000 |
