Product Details:
|
| Part Number: | N9K-C93108TC-EX | Ports: | 48 X 10GBASE-T And 6 X 40/100-Gbps QSFP28 Ports |
|---|---|---|---|
| Downlink Supported Speeds: | 100-Mbps And 1/10-Gbps Speeds | CPU: | 4 Cores |
| System Memory: | 24 GB | SSD Drive: | 64 GB |
| Highlight: | QSFP28 Cisco Industrial Switch,N9K-C93108TC-EX Cisco Ethernet Switch |
||

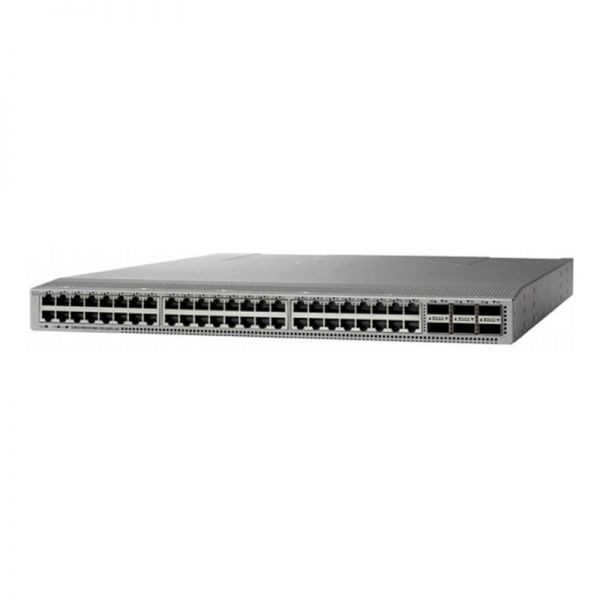

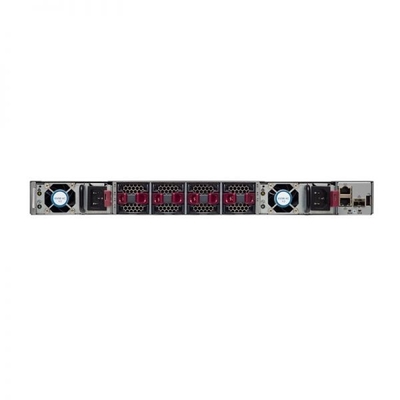

N9K-C93108TC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
Table 1 shows the quick spec.
| Part Number | N9K-C93108TC-EX |
| Ports | 48 x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 100-Mbps and 1/10-Gbps speeds |
| CPU | 4 cores |
| System memory | 24 GB |
| SSD drive | 64 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 290W |
| Maximum power (AC/DC) | 499W |
|
Physical dimensions (H x W x D) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Weight (without power supplies or fans) | 17.7 lb (8.0 kg) |
