| Model Number: | PowerEdge R750, PowerEdge R750 | Type: | Rack |
|---|---|---|---|
| Memory: | 128GB DDR4 | Warranty: | 3 Years |
| High Light: | Racks Dell Poweredge Servers,8SFF Racks Servers,R750 Dell Poweredge Servers |
||

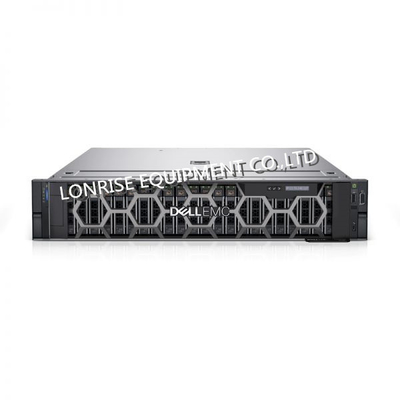

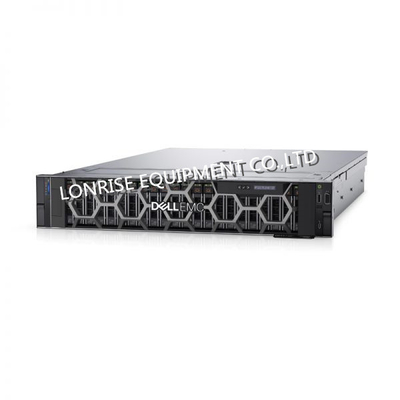

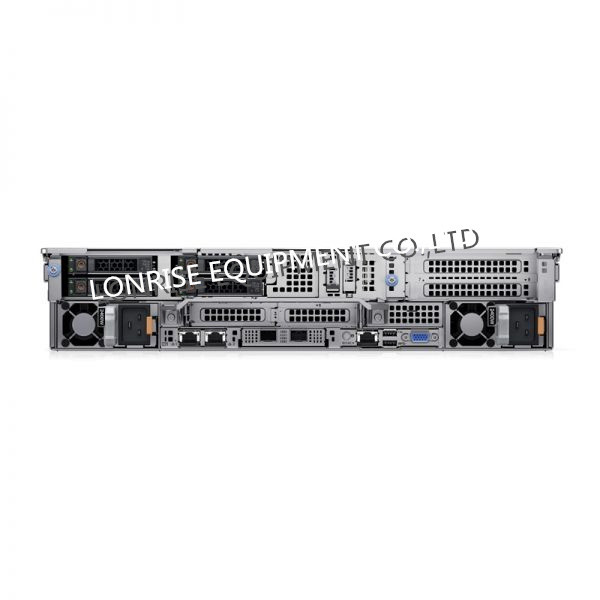

Dell R750 Server
Dell EMC PowerEdge R750, powered by the 3rd Generation Intel Xeon Scalable processors is a rack server to address application performance and acceleration. The PowerEdge R750, is a dual-socket/2U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds - R750 Dell.
Table 1 shows the 3 configuration of Dell R750 8SFF Server.
| Configuration | Processor | Memory | Hard Drive | Power Supply |
| Dell 2U R750 2*4310 8SFF Server | 2 * Intel Xeon 4310 | 2 * 32G | 2*1.2T SAS 10K | 2*800W |
| Dell 2U R750 2*5317 8SFF Server | 2 * Intel Xeon 5317 | 2 * 32G | 2*1.2T SAS 10K | 2*800W |
| Dell 2U R750 2*6330 8SFF Server | 2 * Intel Xeon 6330 | 2 * 32G | 2*1.2T SAS 10K | 2*800W |
Table 2 shows the quick spec of Dell R750 server.
| Series | Dell EMC PowerEdge R750 |
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
| Memory |
• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only |
| Storage controllers |
• Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
| Drive Bays |
Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Power Supplies |
• 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1400 W Platinum AC/240 mixed mode • 2400 W Platinum AC/240 mixed mode |
The Dell EMC PowerEdge R750 offers compelling performance, highspeed memory and capacity, I/O bandwidth and storage to address data requirements – Ideal for:
• Traditional corporate IT
• Database and Analytics
• Virtual Desktop Infrastructure
• AI/ML and HPC
