Product Details:
|
| Description: | Switch - 12 Ports - L3 - Managed - Stackable | Model: | C9300X-12Y-E |
|---|---|---|---|
| Enclosure Type: | Rack-mountable 1U | Subtype: | 25 Gigabit Ethernet |
| Ports: | 12 X 1/10/25 Gigabit SFP28 | RAM: | 16 GB |
| Flash Memory: | 16 GB | Interfaces: | 24 X 1/10/25GBase-X SFP28 |
| High Light: | Industrial Ethernet Catalyst 9300 Switches,12 Port Catalyst 9300 Switches,Cisco Industrial Ethernet Router |
||
C9300X 12Y A ethernet switch netengine gigabit ethernet switches

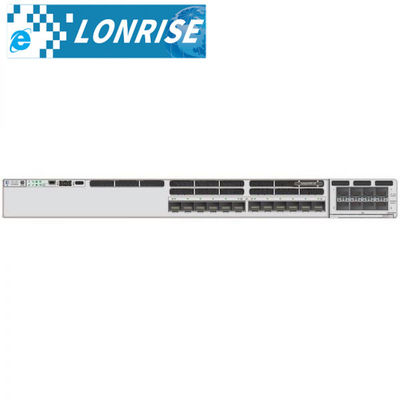

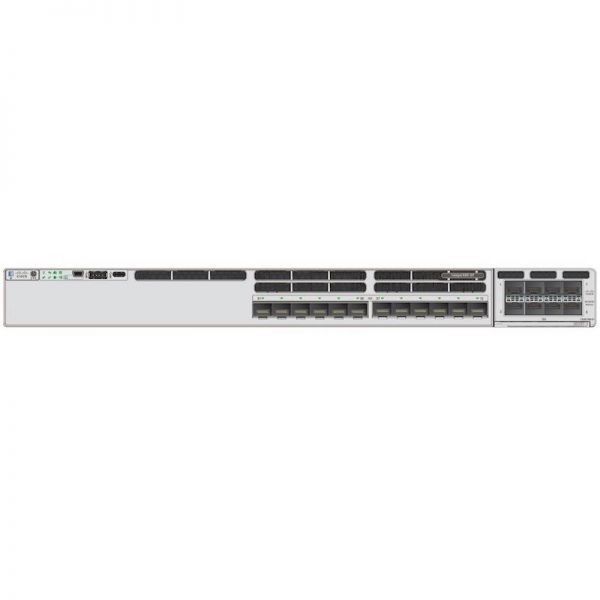

The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE®+ ports.
| Product Code | C9300X-12Y-E |
| Product Description | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials |
| Device Type | Switch - 12 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 12 x 1/10/25 Gigabit SFP28 |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Interfaces | 24 x 1/10/25GBase-X SFP28 |
HOT SEAL YOU MAY LIKE
| Model | Total 10/100/1000, Multigigabit copper or SFP Fiber | Uplink Configuration | Default AC power supply |
| C9300X-48HX | 48 port Cisco UPOE+, 48x 10G Multigigabit | Modular Uplinks | 1100W AC |
| (10G/5G/2.5G/1G/100M) with 90W UPOE+ | |||
| C9300X-48TX | 48 port Data, 48x 10G Multigigabit | Modular Uplinks | 715W AC |
| (10G/5G/2.5G/1G/100M) | |||
| C9300X-48HXN | 48 port Cisco UPOE+, 8x 10G Multigigabit | Modular Uplinks | 1100W AC |
| (10G/5G/2.5G/1G/100M) + 40x 5G Multigigabit (5G/2.5G/1G/100M) | |||
| C9300X-24HX | 24 port Cisco UPOE+, 24x 10G Multigigabit | Modular Uplinks | 1100W AC |
| (10G/5G/2.5G/1G/100M) | |||
| C9300X-12Y | 12 port 25G/10G/1G SFP28 | Modular Uplinks | 715W AC |
| C9300X-24Y | 24 port 25G/10G/1G SFP28 | Modular Uplinks | 715W AC |
| C9300-24T | 24 port Data | Modular Uplinks | 350W AC |
| C9300-48T | 48 port Data | Modular Uplinks | 350W AC |
| C9300-24P | 24 port PoE+ | Modular Uplinks | 715W AC |
| C9300-48P | 48 port PoE+ | Modular Uplinks | 715W AC |
| C9300-24U | 24 port Cisco UPOE | Modular Uplinks | 1100W AC |
| C9300-48U | 48 port Cisco UPOE | Modular Uplinks | 1100W AC |
| C9300-24UX | 24 port Multigigabit Cisco UPOE | Modular Uplinks | 1100W AC |
| (10G/5G/2.5G/1G/100M) | |||
| C9300-48UXM | 48 port Cisco UPOE, 36 ports 2.5G/1G/100M+ 12 ports Multigigabit (10G/5G/2.5G/1G/100M) | Modular Uplinks | 1100W AC |
| C9300-48UN | 48 port 5Gbps Multigigabit UPOE ports (5G/2.5G/1G/100M) | Modular Uplinks | 1100W AC |
| C9300-24UB | 24 port Cisco UPOE | Modular Uplinks | 1100W AC |
| C9300-24UXB | 24 port Multigigabit Cisco UPOE (10G/5G/2.5G/1G/100M) | Modular Uplinks | 1100W AC |
| C9300-48UB | 48 port Cisco UPOE | Modular Uplinks | 1100W AC |
| C9300-24H | 24 port Cisco UPOE+ | Modular Uplinks | 1100W AC |
| C9300-48H | 48 Cisco UPOE+ | Modular Uplinks | 1100W AC |
| C9300-24S | 24 1G SFP | Modular Uplinks | 715W AC |
| C9300-48S | 48 port 1G SFP | Modular Uplinks | 715W AC |
| Fixed uplink models | |||
| C9300L-24T-4G | 24 port Data | 4x 1G fixed uplinks | 350W AC |
| C9300L-24T-4X | 24 port Data | 4x 10G/1G fixed uplinks | 350W AC |
| C9300L-48T-4G | 48 port Data | 4x 1G fixed uplinks | 350W AC |
| C9300L-48T-4X | 48 port Data | 4x 10G/1G fixed uplinks | 350W AC |
| C9300L-24P-4G | 24 port PoE+ | 4x 1G fixed uplinks | 715W AC |
| C9300L-24P-4X | 24 port PoE+ | 4x 10G/1G fixed uplinks | 715W AC |
| C9300L-48P-4G | 48 port PoE+ | 4x 1G fixed uplinks | 715W AC |
| C9300L-48P-4X | 48 port PoE+ | 4x 10G/1G fixed uplinks | 715W AC |
| C9300L-48PF-4G | 48 port PoE+ | 4x 1G fixed uplinks | 1100W AC |
| C9300L-48PF-4X | 48 port PoE+ | 4x 10G/1G fixed uplinks | 1100W AC |
| C9300L-24UXG-4X | 24 port Cisco UPOE, 8 ports Multigigabit | 4x 10G/1G fixed uplinks | 1100W AC |
| (10G/5G/2.5G/1G/100M) + 16 ports 1G(1G/100M/10M) | |||
| C9300L-24UXG-2Q | 24 port Cisco UPOE, 8 ports Multigigabit | 2x 40G fixed uplinks | 1100W AC |
| (10G/5G/2.5G/1G/100M) + 16 ports 1G(1G/100M/10M) | |||
| C9300L-48UXG-4X | 48 port Cisco UPOE, 12 ports Multigigabit | 4x 10G/1G fixed uplinks | 1100W AC |
| (10G/5G/2.5G/1G/100M) + 36 port 1G (1G/100M/10) | |||
| C9300L-48UXG-2Q | 48 port Cisco UPOE, 12 port Multigigabit | 2x 40G fixed uplinks | 1100W AC |
| (10G/5G/2.5G/1G/100M) + 36 port 1G(1G/100M/10M) | |||
| C9300LM-48UX-4Y | 48 port Cisco UPOE, 8 port 10G Multigigabit (10G/5G/2.5G/1G/100M) + 40 port 1G (1G/100M/10M) | 4x25G fixed uplinks | 715W AC |
| C9300LM-48U-4Y | 48 port 1G (1G/100M/10M) with Cisco UPOE | 4x25G fixed uplinks | 715W AC |
| C9300LM-24U-4Y | 24 port 1G (1G/100M/10M) with Cisco UPOE | 4x25G fixed uplinks | 715W AC |
| C9300LM-48T-4Y | 48 port 1G (1G/100M/10M) Data | 4x25G fixed uplinks | 715W AC |
