C9200-24PXG-A Cisco Catalyst 9200 Series Network Switch with 24 Ports 8G PoE+ and Network Essentials

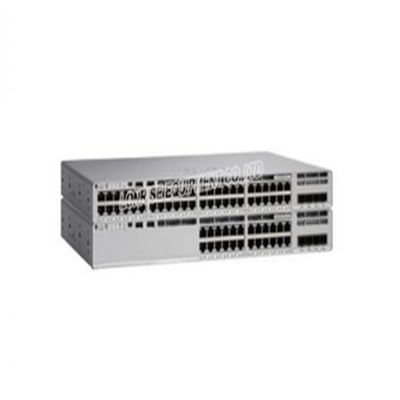

Large Image : C9200-24PXG-A Cisco Catalyst 9200 Series Network Switch with 24 Ports 8G PoE+ and Network Essentials

Product Details:

Place of Origin:	China
Brand Name:	Cisco
Certification:	CE
Model Number:	C9200-24PXG-A

Contact Now

C9200-24PXG-A Cisco Catalyst 9200 Series Network Switch with 24 Ports 8G PoE+ and Network Essentials

Description

Name:	C9200-24PXG-A	Model:	C9200-24PXG-A
Detail:	Catalyst 9200 24-port 8xmGig PoE+, Network Advantage	Availability:	In Stock
Condition:	New Factory Sealed	Warranty:	1 Years
Place Of Origin::	China	Software:	Network Essentials
Certification:	CE	Ports::	24
Highlight:	24 ports Network Switch , 8G PoE+ Cisco Catalyst 9200 Series Switch , Network Essentials Ethernet Switch

C9200-24PXG-A Network Switch Overview

The Cisco Catalyst 9200 Series C9200L-24PXG-A is a 24-port network switch featuring 8 multi-gigabit ports (up to 10G) and 16 gigabit ports with full PoE+ capability. This enterprise-grade switch delivers secure, always-on networking with simplified IT operations.

Quick Specifications

Model	C9200L-24PXG-A
Downlink Ports	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)
Uplink Configuration	4x 10G fixed uplinks
Default Power Supply	PWR-C5-600WAC
Fans	Fixed redundant
Software	Network Essentials
Stacking Bandwidth	80 Gbps
DRAM	2 GB
Flash	4 GB
Switching Capacity	272 Gbps
Forwarding Rate	214.28 Mpps
Chassis Dimensions	1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm)

Product Highlights

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
Flexible downlink options with data or PoE+
Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
UADP 2.0 Mini with integrated CPU offers optimized scale with better cost structure
Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Layer 3 capabilities including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Cisco Software-Defined Access (SD-Access) with simplified operations and policy-based automation
Plug and Play (PnP) enabled for easy deployment
Cisco IOS XE operating system with model-driven programmability and streaming telemetry
Programmable ASIC with configurable allocation of Layer 2/3 forwarding, ACLs, and QoS

Supported Products

StackWise-80 and StackWise-160 Kit and Cables

Product Number	Product Description
C9200L-STACK-KIT=	C9200L Stack Kit Spare
STACK-T4-50CM	50CM Type 3 Stacking Cable
STACK-T4-1M	1M Type 3 Stacking Cable
STACK-T4-3M	3M Type 3 Stacking Cable

Power Supplies

Product Number	Product Description
PWR-C5-600WAC/2=	600WAC power supply spare

Model Comparison

Model	Downlinks	Uplinks	Power Supply	Fans
C9200L-24PXG-4X-E	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)	4x 10G fixed uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-48PXG-4X-E	48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G)	4x 10G fixed uplinks	PWR-C5-1KWAC	Fixed redundant
C9200L-24PXG-2Y-E	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)	2x 25G fixed uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-48PXG-2Y-E	48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G)	2x 25G fixed uplinks	PWR-C5-1KWAC	Fixed redundant

Technical Specifications

Virtual Networks	1
Total MAC Addresses	16,000
IPv4 Routes	11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 Routing Entries	3,000
IPv6 Routing Entries	1,500
Multicast Routing Scale	1,000
QoS Scale Entries	1,000
ACL Scale Entries	1,500
Packet Buffer	6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow Entries	16,000 flows on 24- and 48-port Gigabit Ethernet models
VLAN IDs	1024
Total Switched Virtual Interfaces	512
Jumbo Frames	9198 bytes
Wireless Bandwidth	N/A
Mean Time Between Failures	379,410 hours
