C9200L-24T-4X-A Catalyst 9200L 24-port Data Ethernet Switch with 4x10G Uplink and Network Advantage Software

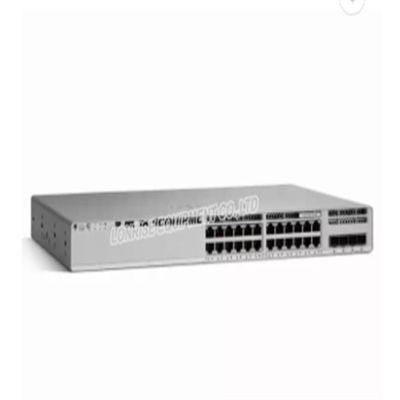

Large Image : C9200L-24T-4X-A Catalyst 9200L 24-port Data Ethernet Switch with 4x10G Uplink and Network Advantage Software

Product Details:

Place of Origin:	China
Brand Name:	Cisco
Certification:	CE
Model Number:	C9200L-24T-4X-A

Contact Now

C9200L-24T-4X-A Catalyst 9200L 24-port Data Ethernet Switch with 4x10G Uplink and Network Advantage Software

Description

Name:	C9200L-24T-4X-A	Model:	C9200L-24T-4X-A
Detail:	Catalyst 9200L 24-port Data 4x10G Uplink Switch, Network Advantage	Availability:	In Stock
Condition:	New Factory Sealed	Warranty:	1 Years
Place Of Origin::	China	Software:	Network Essentials
Certification:	CE	Ports::	24
Highlight:	24-port Data Network Switch , 4x10G Uplink Ethernet Switch , Network Advantage Software Catalyst 9200L Switch

C9200L-24T-4X-A Catalyst 9200 Series Network Switch

The Cisco Catalyst 9200L-24T-4X-A is a 24-port data switch with 4x10G uplinks and Network Advantage software. Part of the Catalyst 9200 Series, it extends intent-based networking and Catalyst 9000 innovation to broader deployments, offering secure, always-on connectivity with simplified IT operations.

Quick Specifications

Downlink Ports	24 x 10/100/1000 data ports
Uplink Configuration	4 x 10G fixed uplinks
Power Supply	PWR-C5-125WAC (default)
Fans	Fixed redundant
Software	Network Advantage
Stacking Bandwidth	80 Gbps
DRAM	2 GB
Flash Memory	4 GB
Switching Capacity	128 Gbps
Forwarding Rate	190.4 Mpps
Chassis Dimensions	1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm)

Product Highlights

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
Flexible downlink options with data or PoE+ configurations
Operational efficiency with optional backplane stacking (up to 160 Gbps bandwidth)
UADP 2.0 Mini with integrated CPU for optimized scale and cost structure
Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Layer 3 capabilities including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Cisco Software-Defined Access (SD-Access) for simplified operations and policy-based automation
Plug and Play (PnP) enabled for easy device deployment
Cisco IOS XE operating system with model-driven programmability and streaming telemetry
Programmable ASIC with configurable allocation of Layer 2/3 forwarding, ACLs, and QoS

Supported Products

Product Number	Product Description
C9200-STACK-KIT=	C9200 Stack Kit Spare
C9200L-STACK-KIT=	C9200L Stack Kit Spare
STACK-T4-50CM	50CM Type 3 Stacking Cable
STACK-T4-1M	1M Type 3 Stacking Cable
STACK-T4-3M	3M Type 3 Stacking Cable
PWR-C5-125WAC/2=	125WAC Power Supply Spare

Product Comparison

Product Number	Product Description
C9200L-24T-4X-A	Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage
C9200L-24T-4X-E	Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials
C9200L-24P-4X-A	Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage
C9200L-24P-4X-E	Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials

Technical Specifications

Virtual Networks	1
MAC Address Capacity	16,000
IPv4 Routes	11,000 (8,000 direct + 3,000 indirect)
IPv4 Routing Entries	3,000
IPv6 Routing Entries	1,500
Multicast Routing Scale	1,000
QoS Scale Entries	1,000
ACL Scale Entries	1,500
Packet Buffer	6 MB for 24-port Gigabit Ethernet models
Flexible NetFlow Entries	16,000 flows
VLAN IDs	1024
Switched Virtual Interfaces	512
Jumbo Frames	9198 bytes
Wireless Bandwidth	N/A
MTBF	525,990 hours
