C9200L-24T-4X-E Catalyst 9200L 24-port Data 4x10G Uplink Ethernet Switch with Network Essentials

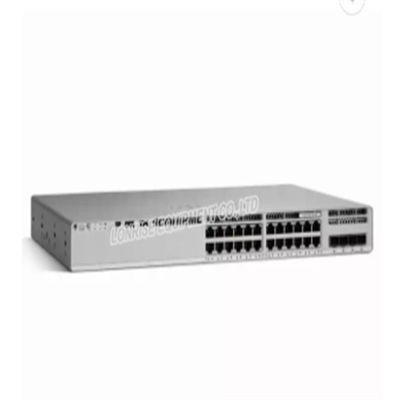

Large Image : C9200L-24T-4X-E Catalyst 9200L 24-port Data 4x10G Uplink Ethernet Switch with Network Essentials

Product Details:

Place of Origin:	China
Brand Name:	Cisco
Certification:	CE
Model Number:	C9200L-24T-4X-E

Contact Now

C9200L-24T-4X-E Catalyst 9200L 24-port Data 4x10G Uplink Ethernet Switch with Network Essentials

Description

Name:	C9200L-24T-4X-E	Model:	C9200L-24T-4X-E
Detail:	Catalyst 9200L 24-port Data 4x10G Uplink Switch, Network Essentials	Availability:	In Stock
Condition:	New Factory Sealed	Warranty:	1 Years
Place Of Origin::	China	Software:	Network Essentials
Certification:	CE	Ports::	24
Highlight:	24-port Data Network Switch , 4x10G Uplink Ethernet Switch , Network Essentials Catalyst 9200L Switch

C9200L-24T-4X-E Catalyst 9200 Series Network Switch

The Cisco Catalyst 9200L-24T-4X-E is a 24-port data switch with 4x10G uplinks and Network Essentials software. Part of the Catalyst 9200 Series, it extends intent-based networking and Catalyst 9000 innovation to broader deployments, offering secure, always-on connectivity with simplified IT operations.

Quick Specifications

Downlink Ports	24 x 10/100/1000 data ports
Uplink Configuration	4 x 10G fixed uplinks
Power Supply	PWR-C5-125WAC
Fans	Fixed redundant
Software	Network Essentials
Stacking Bandwidth	80 Gbps
DRAM	2 GB
Flash	4 GB
Switching Capacity	128 Gbps
Forwarding Rate	190.4 Mpps
Chassis Dimensions	1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm)

Product Highlights

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
Flexible downlink options with data or PoE+
Operational efficiency with optional backplane stacking up to 160 Gbps
UADP 2.0 Mini with integrated CPU for optimized scale and cost structure
Enhanced security with AES-128 MACsec encryption and policy-based segmentation
Layer 3 capabilities including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Cisco Software-Defined Access (SD-Access) for simplified operations
Plug and Play (PnP) enabled for easy deployment
Cisco IOS XE with model-driven programmability and streaming telemetry

Supported Products

Product Number	Product Description
C9200-STACK-KIT=	C9200 Stack Kit Spare
C9200L-STACK-KIT=	C9200L Stack Kit Spare
STACK-T4-50CM	50CM Type 3 Stacking Cable
STACK-T4-1M	1M Type 3 Stacking Cable
STACK-T4-3M	3M Type 3 Stacking Cable
PWR-C5-125WAC/2=	125WAC Power Supply Spare

Model Comparison

Product Number	Product Description
C9200L-24T-4X-A	Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage
C9200L-24T-4X-E	Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials
C9200L-24P-4X-A	Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage
C9200L-24P-4X-E	Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials

Technical Specifications

Virtual Networks	1
Total MAC Addresses	16,000
IPv4 Routing Entries	3,000
IPv6 Routing Entries	1,500
Multicast Routing Scale	1,000
QoS Scale Entries	1,000
ACL Scale Entries	1,500
Packet Buffer	6 MB
Flexible NetFlow Entries	16,000 flows
VLAN IDs	1024
Total SVIs	512
Jumbo Frames	9198 bytes
Mean Time Between Failures	525,990 hours
