Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | Application: | Indoor |
| Type: | Router | MOQ: | 1 PCS |
| Brand: | Cisco | Product Status: | Stock |
| High Light: | 5G System Cisco ASR 1000 Router,SFP Ports Industrial Network Router,ASR1002-X Cisco Network Router |
||

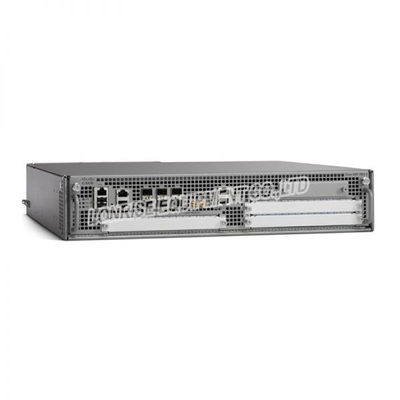

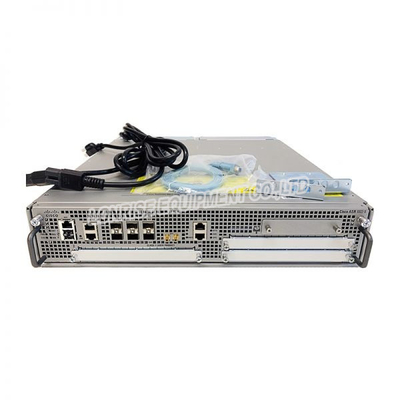

Cisco ASR 1002-X router is delivered into 2 rack unit chassis, the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules, share port adopters all integrated in the chassis. ASR 1002-X router comes with 6 build-in SFP ports and 3 box slots for I/O connectivity. The integrated embedded service processors offer 4 levels of system performance: 5Gbps which is default, 10, 20, 36Gbps all through software license upgrade without need for any additional hardware. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16Gb.
This ASR1002-X is similar with the ASR1002-X=. The ASR1002-X= is a spare one.
ASR1002-X Specifications |
|
|
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 3.5 in. (88.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: ● 38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers) ● 39.05 lb (17.72 kg) (with dual DC power supply and blank covers) ● No SPAs included Note: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated. |
| Default memory | 4-GB DRAM shared across route processor, ESP, and SIP |
| Number of SIPs or Ethernet line cards supported | Integrated in chassis |
| Shared port adapters | 3 SPA slots |
| Ethernet port adapters | N/A |
| Cisco ASR 1000 Series ESP | Integrated in chassis |
| Route processor | Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | Yes: 6 Gigabit Ethernet SFP ports |
| Built-in 10 Gigabit Ethernet port | No |
| Network interface module | No |
| Cisco ASR 1000 Series | Cisco ASR 1002-X |
| ESP support |
Cisco ASR 1002-X ESP with 5-Gbps (default) Upgradable through software-activated feature license to 10, 20, or 36 Gbps |
| ESP bandwidth | 5 to 36 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet line cards | Integrated in chassis: not upgradable |
| Embedded hardware-based encryption | Yes: Up to 4-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 3.7.0S |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Same as for Cisco ASR 1002 |
| Power input | Same as for Cisco ASR 1002 |
| Power consumption |
● Maximum (DC): 590W ● Maximum (AC): 560W ● Maximum (out): 470W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | 32 to 104°F (0 to 40°C) |
| Operating temperature (short-term) | 32 to 122°F (0 to 50°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature |
-40 to 150°F (-40 to 70°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating altitude | -500 to 10,000 feet (152 to 3048 meters) |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards | Same as for Cisco ASR 1001-X |
| Safety Standard |
UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
