Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | Application: | Indoor |
| Type: | Switch | MOQ: | 1 PCS |
| Brand: | Cisco | Product Status: | Stock |
| High Light: | 370W Catalyst 2960-X Switch,24 GigE Catalyst 2960-X Switch,LAN Base Cisco Network Switches |
||

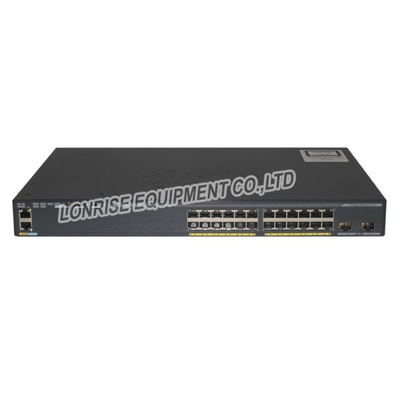

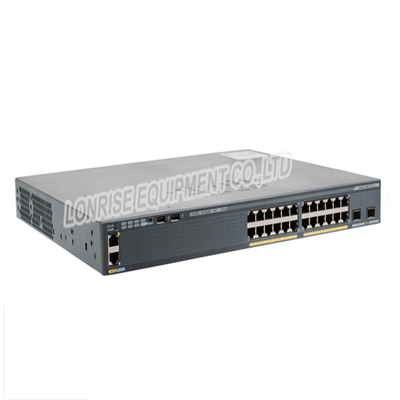

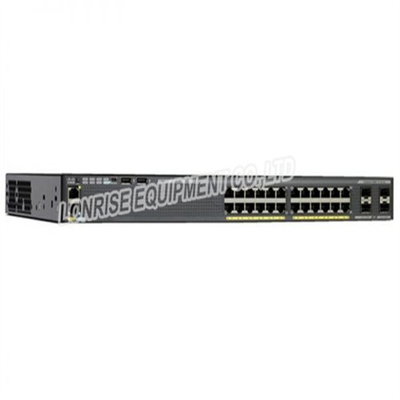

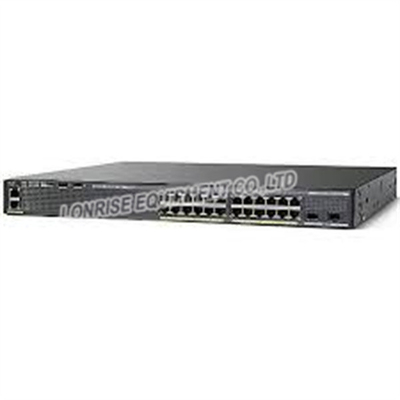

Cisco Catalyst 2960X series 24 ports LAN Base stackable switch delivers Power over Ethernet Plus (PoE+) technology and 2 x 10G SFP+ uplink ports.
WS-C2960X-24PD-L Specification |
|
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x 10G SFP+ |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 370W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80 G |
| Forwarding Performance | 95.2Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.49KVA |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 14.5 Inches (36.8 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Weight | 12.7 lb (5.7 Kg) |
| Package Weight | 20.26 lb (9.19 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 325,780 |
| Compliant Standards |
● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.3 10BASE-T |
| System software / license | |
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features |
●Jumbo Frames ●VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ●802.3ad LACP ●PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ●port CoS Trust and Override ●Scheduling ●Priority Queuing ●Configure CoS Priority Queues ●Weighted Tail Drop ●DSCP transparency |
| Network security |
●SSH, SSL and SCP ●RADIUS and TACACS+ ●SNMPv3 crypto ●802.1x ●802.1x Accounting / MIB ●802.1x w/ port security ●802.1x w/Voice VLAN ●802.1x Guest VLAN ●802.1x VLAN assignment ●802.1x MAC-Auth Bypass ●BPDU/Root Guard ●Port Security ●Private VALN Edge ●Storm Control ●Block unknown unicast and multicast ●IGMP Snooping ●IGMP Filter/Throttle |
| Management and Troubleshooting |
●Auto-MDOX ●TDR ●UDLD ●IP SLA Responder ●layer 2 / IP Traceroute ●SPAN ●RSPAN ●Express Setup ●Device Manager ●Cisco Network Assistant ●Smartports + Advisor ●Troubleshooting Advisor ●Drag-and-drop Cisco IOS Upgrade ●IP Address DHCP ●Autoinstall with saved configuration ●Configuration Replace ●DHCP Auto Image Upgrade ●DHCP Port Based Allocation ●Error Disable MIB |
| Environmental Ranges | |
| Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
| Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to 40ºC) |
| Short-term exception at sea level* |
23ºF to 131ºF (-5ºC to 55ºC) |
| Short-term exception up to 5000 feet (1500 m)* |
23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m)* |
23ºF to 113ºF (-5ºC to 45ºC) |
| Short-term exception up to 13,000 feet (4000 m)* |
23º to 104ºF (-5ºC to 40ºC) |
| Storage temperature up to 15,000 feet (4573 m) |
-13º to 158ºF (-25º to 70ºC) |
| Operating altitude |
Up to 10,000 Feet (Up to 3000 Meters) |
| Storage altitude |
Up to 13,000 (Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
