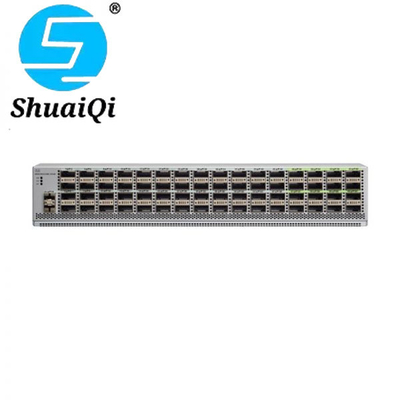

Cisco N9K-C9364C Nexus 9000 Series ACI Spine Switch With 64p 40/100G QSFP28

N9K-C9364C Specification

● 64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports

● 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)

● Hot-swappable, dual fan trays with redundant fans

● System memory: 32GB

● SSD: 256GB

● USB: 1 port

● RS-232 serial console ports: 1

● Management ports:
2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)

● Broadwell-DE CPU: 4 cores

● Power: 1200W AC, 930W DC or 1200W HVAC/HVDC

● Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal)

*Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W; PSU redundancy is not supported when used in 100-120V

● Frequency: 50 to 60 Hz (AC)

● Efficiency: 90% or greater (20 to 100% load)

● RoHS compliance: Yes

● Hot swappable: Yes

● Port-side intake or port-side exhale options

● Typical power: 429W (AC)

● Maximum power: 1245W (AC)

● Physical (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)

● Weight: 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans

● Operating temperature: 32 to 104°F (0 to 40°C)

● Nonoperating (storage) temperature: -40 to 158°F
(-40 to 70°C)

● Humidity: 5 to 85% (noncondensing)

● Altitude: 0 to 13,123 ft (0 to 4000m)

● Fan speed at 40%: 76.7 dBA

● Fan speed at 70%: 88.7 dBA

● Fan speed at 100%: 97.4 dBA

● UL 60950-1 Second Edition

● CAN/CSA-C22.2 No. 60950-1 Second Edition

● EN 60950-1 Second Edition

● IEC 60950-1 Second Edition

● AS/NZS 60950-1

● GB4943

● 47CFR Part 15 (CFR 47) Class A

● AS/NZS CISPR22 Class A

● CISPR22 Class A

● EN55022 Class A

● ICES003 Class A

● VCCI Class A

● EN61000-3-2

● EN61000-3-3

● KN22 Class A

● CNS13438 Class A

● EN55024

● CISPR24

● EN300386

● KN 61000-4 series
