Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | Application: | Indoor |
| Type: | Switch | MOQ: | 1 PCS |
| Brand: | Cisco | Product Status: | Stock |

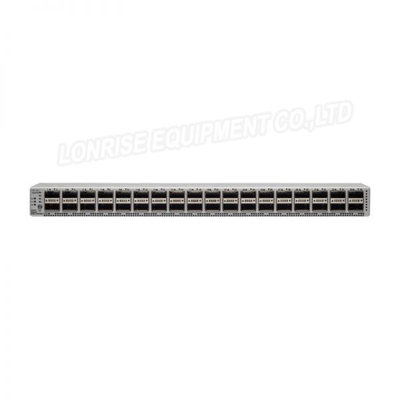

Cisco Nexus 9300-FX2 series is an extension of Nexus 9300-FX series switches with higher bandwidth capacity. The switches offer a variety of interface options to transparently migrate existing data centers from 1-Gbps, and 10-Gbps speeds to 25- Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100- Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
N9K-C9336C-FX2 Specification |
|
| Item | Cisco Nexus 9300-FX2 Series Switches |
| Feature | Cisco Nexus 9336C-FX2 |
| Ports | 36 x 40/100-Gbps QSFP28 ports |
| Supported speeds |
1/10/25/40/100-Gbps Ethernet Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4x10/25G (10G w/QSA) 1G w/QSA except ports 1-6 and 33-36 |
| CPU | 4 cores |
| System memory | 24 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP+ |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) |
750W AC, 1100W AC, 1100W DC, 1100W HVAC/HVDC |
| Typical power (AC) | 337W |
| Maximum power (AC) | 719W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) | 100 to 277V |
| Input voltage (DC) | –40 to –72V |
| Input voltage (High-Voltage DC [HVDC]) | –240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 3 dual fan trays |
| Airflow | Port-side intake and exhaust |
| Physical dimensions (H x W x D) |
1.72 x 17.3 x 24.5 in. (4.4 x 43.9 x 62.3 cm) |
| MTBF | 352,590 hours |
| Maximum number of Longest Prefix Match (LPM) routes** | 896,000 |
| Maximum number of IP host entries** | 896,000 |
| Maximum number of MAC address entries** | 256,000 |
| Maximum number of multicast routes | 128,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups |
Shipping: 8,000 Maximum: 32,000 |
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
| Maximum number of Access Control List (ACL) entries |
Per slice of the forwarding engine: 5000 ingress 2000 egress |
| Maximum number of VLANs | 4096 |
| Number of Virtual Routing and Forwarding (VRF) instances |
Shipping: 1,000 Maximum: 16,000 |
| Maximum number of ECMP paths | 64 |
| Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Network Address Translation (NAT) entries | 1,023 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
| Number of Queues | 8 |
